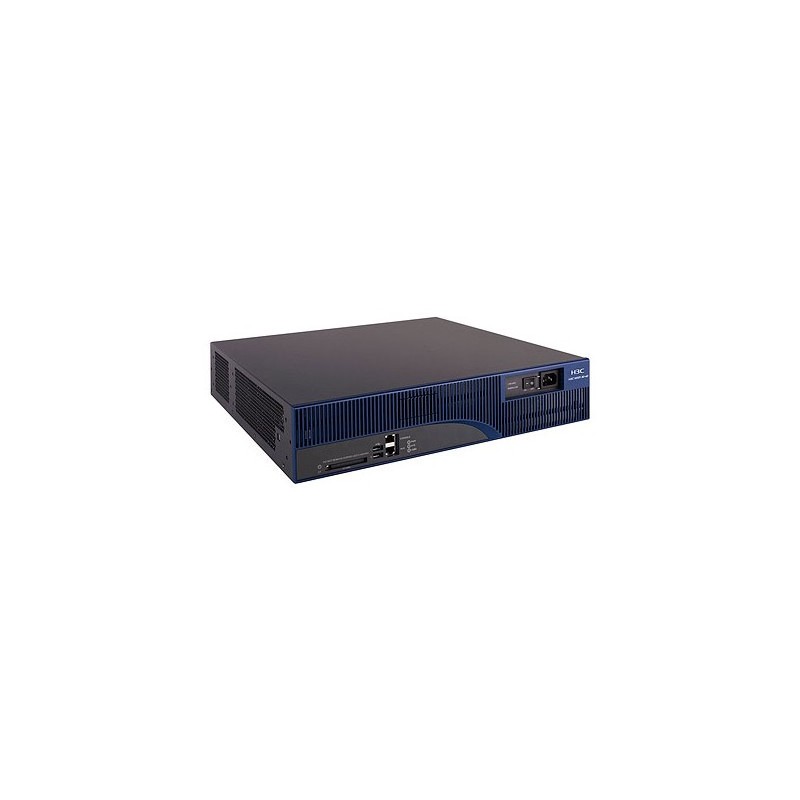

HP A-MSR30-40 Router
  • HP A-MSR30-40 Router
  • HP A-MSR30-40 Router
The HP MSR30 Router Series is a family of high-performance medium-to-large branch routers that deliver integrated routing, switching, security, wireless, and voice in a single box. With its integrated infrastructure and modular design, the MSR30 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.



The MSR30 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. With 4G LTE and UC&C support, it offers dependable branch survivability and resiliency.



Reduce Complexity and Simplify Your Network



The HP MSR30 Router Series simplifies your network through integrated routing, switching, wireless, encryption, VPN, firewall, voice and virtualized applications.



Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.



Single pane of glass management with HP Intelligent Management Center makes administration easier.



Zero-touch deployment and Dynamic VPN reduce management complexity.



No additional licensing complexity or cost for advanced features.



Increased Flexibility and Agility Across Your Network



The HP MSR30 Router Series supports an Open Application Platform module for HP AllianceOne applications such as WAN acceleration and Microsoft Lync.



Fully modular platform and wide range of connectivity options enables the right design for your needs.



A rich host of modules for WAN, LAN, voice, and virtualized applications reduces costs and complexity.



Based on open standards for ease of network integration.



Enhanced Time to Service and Branch Performance



The HP MSR30 Router Series gives your medium-to-large branch offices high performance routing with up to 360 Kpps forwarding to meet bandwidth-intensive applications demands.



High density voice interfaces and embedded service modules provide enhanced integration and faster time to service.



Comprehensive feature set enables branch services that support your needs.



Integrated security eases the transition to the cloud.



Strengthen Medium-to-Large Branch Resiliency and Survivability



The HP MSR30 Router Series with 4GE LTE and 3G WAN access support enables service survivability.



Support for modules like the HP MSR Survivable Branch Communication Module (SBM) powered by Microsoft Lync enables realtime communications, even when the WAN is unavailable.



Advanced hardware architecture and FPGA modules increases the dependability of your network.
Dimensions (WxDxH)422.3 x 442 x 88.2 mm
Electromagnetic compatibilityEN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FC
Form factor2U height
Heat dissipation717 BTU/h
I/O ports4 SIC slots; 4 MIM module slots; 2 1000BASE-T ports(IEEE 802.3ab Type 1000BASE-T); 2 fixed Gigabit Ethernet SFP ports
Input frequency50 / 60 Hz
Input voltage100-120 / 200-240 VAC
MAC address table30000 entries
Management platformIMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Memory and processorProcessor: RISC @ 533 MHz, 256 MB DDR SDRAM, 256 MB compact flash
MountingMounts in an EIA standard 19-in. rack
Operating relative humidity range5 to 90 %
Operating temperature range (T-T)0 - 40 °C
SafetyUL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Source data-sheetIcecat.biz
Storage temperature range (T-T)-40 - 70 °C
Telecom compliance (fax capability)FCC part 68
Throughput360 Kpps (64-byte packets)
Weight11900 g

Similar products

  • Hewlett Packard Enterprise MSR930
    Hewlett Packard Enterprise MSR930
  • Hewlett Packard Enterprise MSR935
    Hewlett Packard Enterprise MSR935
  • Hewlett Packard Enterprise R110
    Hewlett Packard Enterprise R110
  • Hewlett Packard Enterprise 8812 Router Chassis
    Hewlett Packard Enterprise 8812 Router...
  • Hewlett Packard Enterprise JC157A
    Hewlett Packard Enterprise JC157A

Hewlett Packard Enterprise A-MSR30-40

HP A-MSR30-40 Router

JF229A

Out of Stock

£2,517.32
£2,097.77 Ex VAT.
