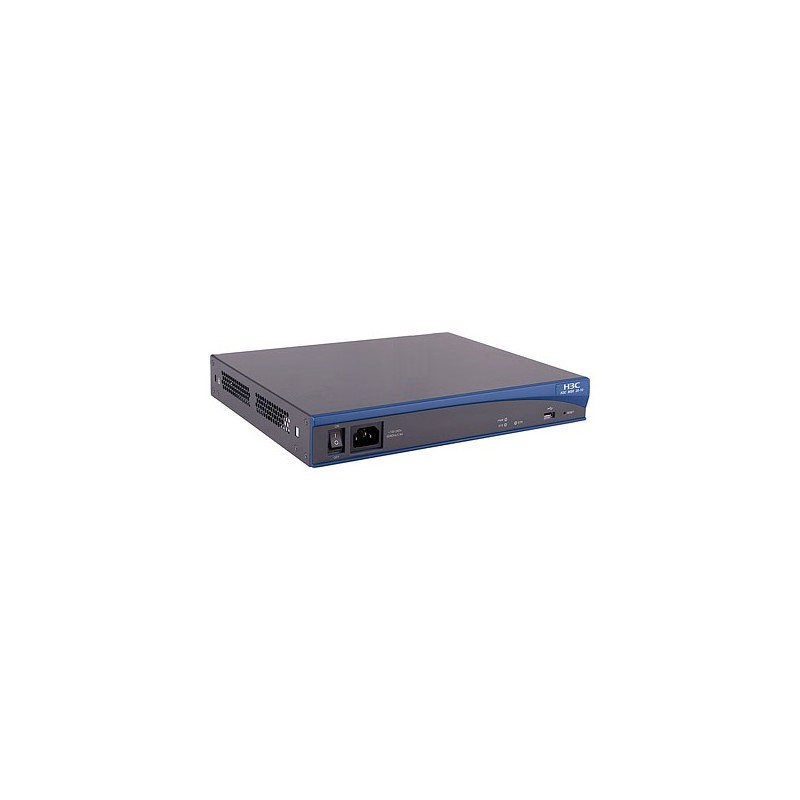

HP MSR20-10 Router
The HP MSR20-1x Series is a component of the HP FlexBranch solution, which is part of the HP FlexNetwork architecture. MSR20-1X routers are full-featured, economical routers designed for converged wired and wireless WAN and LAN environments at small remote branch offices and small to medium-sized businesses. HP MSR20-1x series routers deliver high-performance integrated routing, switching, security, wireless, and voice services while reducing complexity, simplifying management, and increasing control. These routers enable an agile and flexible network infrastructure that can quickly adapt to changing business requirements while delivering integrated services on a single, easy-to-manage platform.
Dimensions (WxDxH)240 x 300 x 44.2 mm
Electromagnetic compatibilityEN 55022 Class B; ICES-003 Class B; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A
Form factor1U
Heat dissipation85 BTU/h
I/O ports1 SIC slot; 1 RJ-45 autosensing 10/100 WAN port(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX), Duplex: half or full; 4 RJ-45 autosensing 10/100 LAN ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX), Duplex: half or full
Input frequency50 - 60 Hz
Input voltage100-120/200-240 VAC
MAC address table10000 entries
Management platformIMC - Intelligent Management Center; command-line interface; Web browser; out-of-band management (serial RS-232C); out-of-band management (DB-9 serial port console); SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Memory and processorProcessor: RISC @ 333 MHz, 256 MB DDR SDRAM, 32 MB flash
MountingDesktop or can be mounted in an EIA-standard 19 in. telco rack when used with the optional rack-mount kit
Operating relative humidity range5 to 90 %
Operating temperature range (T-T)0 - 40 °C
Power consumption (typical)25 W
SafetyUL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Source data-sheetIcecat.biz
Storage temperature range (T-T)-40 - 70 °C
Telecom compliance (fax capability)FCC part 68
Throughputup to 160 Kpps (64-byte packets)
