Dimensions (WxDxH) | 287.1 x 360 x 44.2 mm |
Electromagnetic compatibility | EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FC |
Form factor | 1U |
Heat dissipation | 341 BTU/h |
I/O ports | 4 SIC slots; 2 RJ-45 autosensing 10/100 WAN ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX), Duplex: half or full |
Input frequency | 50 / 60 Hz |
Input voltage | 100-120 / 200-240 VAC |
MAC address table | 10000 entries |
Management platform | IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB |
Memory and processor | Processor: RISC @ 400 MHz, 256 MB compact flash, 256 MB SDRAM |
Mounting | Mounts in an EIA standard 19-in. rack |
Operating relative humidity range | 5 to 90 % |
Operating temperature range (T-T) | 0 - 40 °C |
Safety | UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J |
Source data-sheet | Icecat.biz |
Storage temperature range (T-T) | -40 - 70 °C |
Telecom compliance (fax capability) | FCC part 68 |
Throughput | 180 Kpps (64-byte packets) |

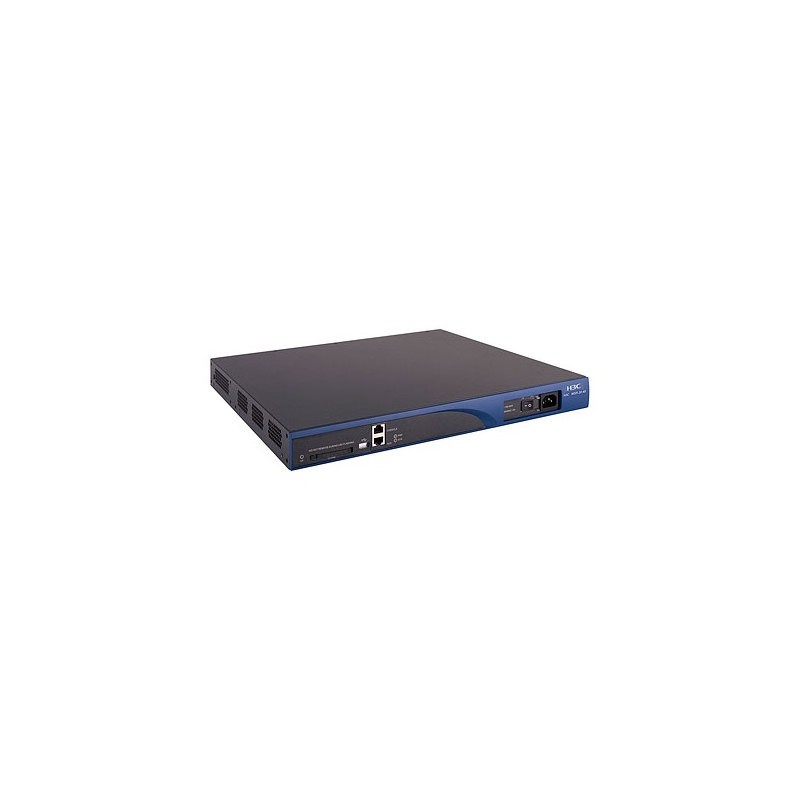

HP MSR20-40 Router
JF228A
Stock Due 01-02-2025
