The HP MSR3000 Router Series is a family of high-performance medium to large branch routers that deliver integrated routing, switching, security, and SIP in a single box. With its integrated infrastructure and modular design, the MSR3000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.
The MSR3000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. It offers lasting investment protection, and helps reduce capital and operating expenses.
The MSR3000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. It offers lasting investment protection, and helps reduce capital and operating expenses.
| Dimensions (WxDxH) | 440 x 480 x 88.1 mm |
| Electromagnetic compatibility | EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; F |
| Form factor | 2U height |
| I/O ports | 4 HMIM slots; 4 SIC slots or 2 DSIC slots; 2 VPM slots; 2 Power Supply slots; 3 RJ-45 1000BASE-T ports (IEEE 802.3ab Type 1000BASE-T); 2 SFP fixed Gigabit Ethernet SFP ports |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100-120/200-240 VAC |
| MAC address table | 500000 entries |
| Management platform | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (s |
| Memory and processor | : RISC, 4 cores @ 1 GHz, 256 MB flash capacity, 2 GB DDR3 SDRAM |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Operating altitude | 5 km |
| Operating altitude (imperial) | up to 16404 ft |
| Operating relative humidity range | 5 to 90 % |
| Operating temperature range (T-T) | 0 - 45 °C |
| Power requirements | No default Power Supply included in the chassis, Min.1/Max.4 power supplies should be ordered |
| Safety | UL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J |
| Size | 439.9 mm (17.32 ") |
| Storage temperature range (T-T) | -40 - 158°F |
| Telecom compliance (fax capability) | FCC part 68; CS-03 |
| Throughput | up to 3.5 Mpps (64-byte packets) |
| Weight | 12.5 kg (27.45 lb) |
Similar products
-
Hewlett Packard Enterprise MSR930
-
Hewlett Packard Enterprise MSR935
-
Hewlett Packard Enterprise R110
-
Hewlett Packard Enterprise 8812 Router...
-
Hewlett Packard Enterprise JC157A
Hewlett Packard Enterprise MSR3044

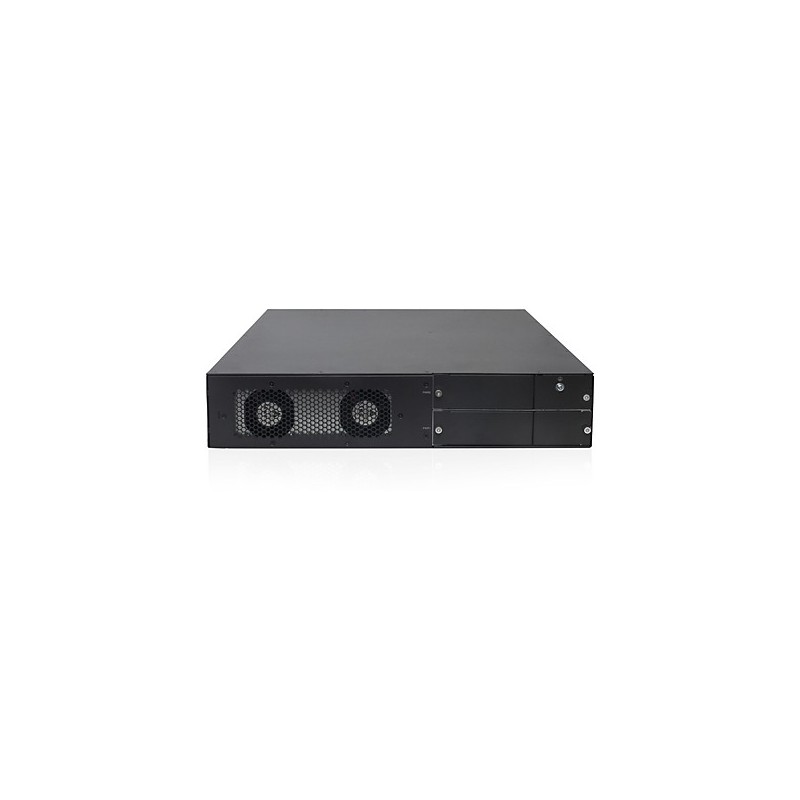

HP MSR3044 Router
JG405A
Out of Stock
£4,296.40
£3,580.33 Ex VAT.
