Cable type | Single-mode |
Certification | CE, FCC, VCCI |
Data transfer rate (max) | 10000 Mbit/s |
Depth | 11.85 mm |
Fiber cable diameters supported | 9/125 µm |
Fiber optic connector | LC |
Height | 56.5 mm |
Interface type | SFP+ |
Maximum transfer distance | 10000 m |
Networking standards | IEEE 802.3ae |
Operating relative humidity range | 5 - 85 % |
Operating temperature range (T-T) | 0 - 70 °C |
Output current | 300 A |
Rx power (min) | -12.6 dBmW |
Safety | UL, TUV, CDRH |
Source data-sheet | Icecat.biz |
Storage relative humidity range | 5 - 95 % |
Storage temperature range (T-T) | -40 - 85 °C |
Tx power (max) | 0.5 dBmW |
Tx power (min) | -8.5 dBmW |
Wavelength | 1310 nm |
Weight | 19.5 g |

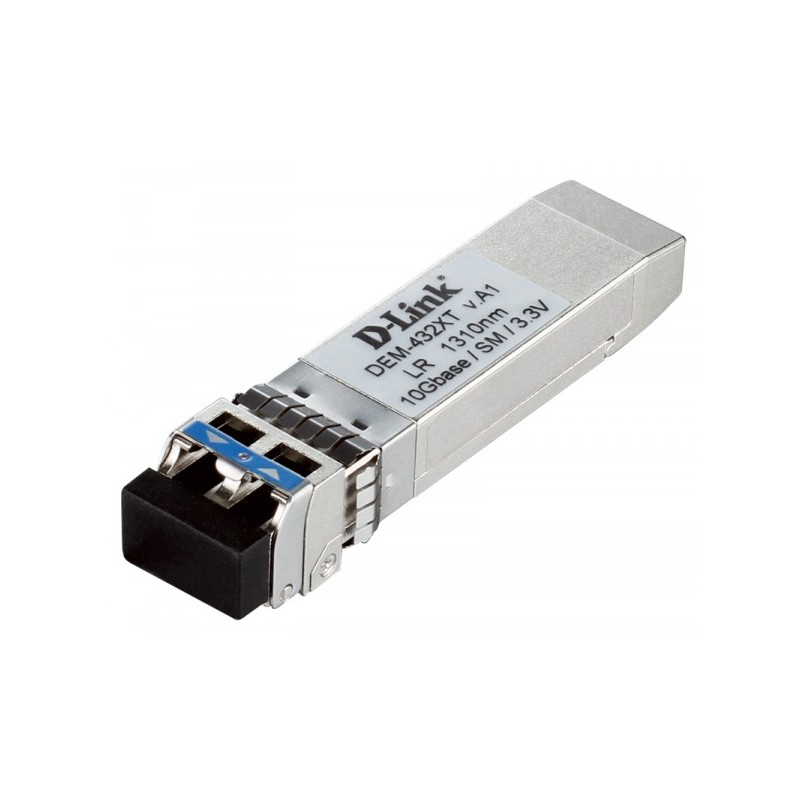

DEM-432XT
Stock Due 01-06-2025
