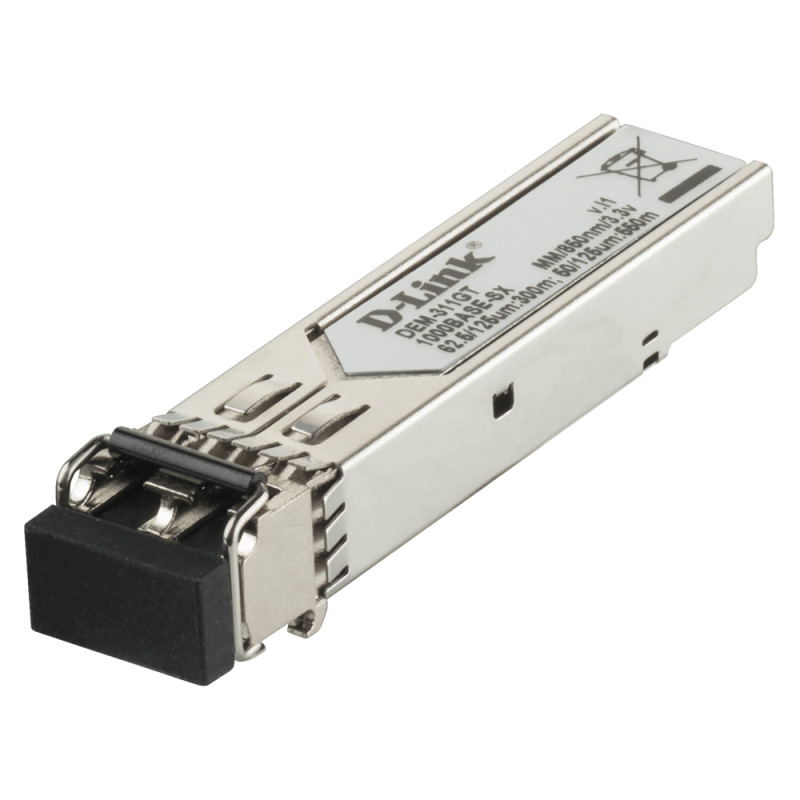

D-Link DEM-311GT
  • D-Link DEM-311GT
  • D-Link DEM-311GT
  • D-Link DEM-311GT
  • D-Link DEM-311GT
High-Speed Network Transmission for Business Environments
D-Link’s new line of Small Form-Factor Pluggables (SFPs) transceivers give you an industry-leading combination of performance and affordability. The DEM-311GT is a high-performance 850 nm multi-mode SFP transceiver supporting Gigabit speeds on multi-mode fiber for distances of up to 550 m. The unit features a metal housing to reduce EMI and to increase durability.

Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

Multiple Applications
Applications of the DEM-300 Series fiber transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.

Small Form Pluggable (SFP) Package
The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.
CertificationFCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL
Depth56.4 mm
Fiber ethernet cabling technology1000Base
Fiber optic connectorLC
Height10.35 mm
Hot-Plug supportY
Input voltage3.3 V
Interface typeSFP
Maximum current0.24 A
Maximum data transfer rate1000 Mbit/s
Maximum operating temperature70 °C
Maximum transfer distance550 m
Networking standardsIEEE 802.3z
Number of products included10 pc(s)
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 70 °C
Rx power (max)-3 dBmW
SFP transceiver typefiber optic
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 85 °C
Tx power (max)-17 dBmW
Tx power (min)-4 dBmW
Wavelength850 nm
Weight15.5 g
Width13.4 mm
RX sensitivity-17 dB
Link budget13 dB
Multi-mode fiber (MMF) supportedY
Product colourBlack,Stainless steel
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Sustainability complianceY
Compliance certificatesRoHS
