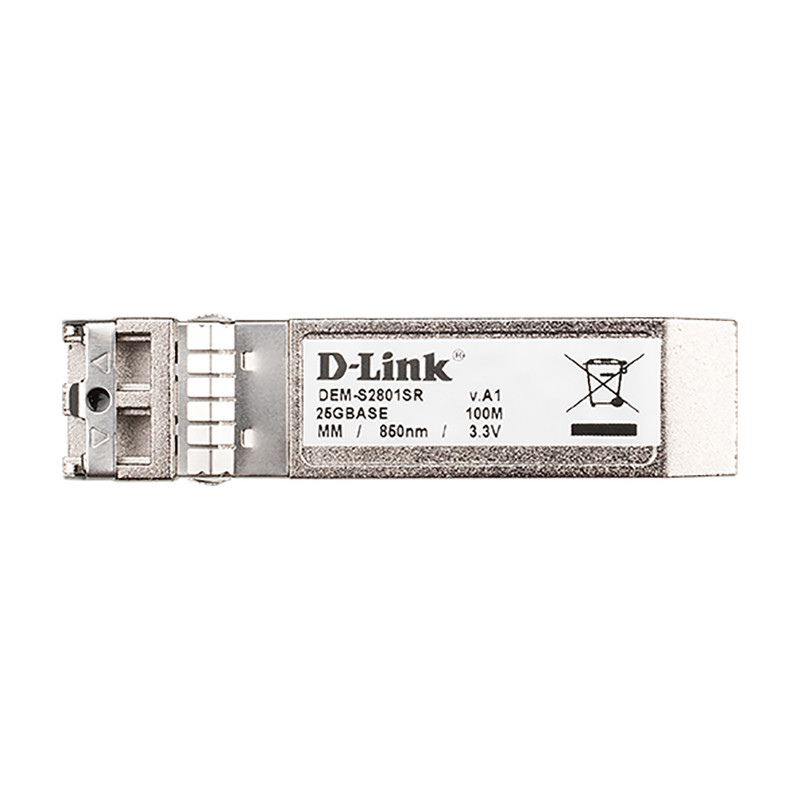

D-Link DEM-S2801SR
  • D-Link DEM-S2801SR
  • D-Link DEM-S2801SR
  • D-Link DEM-S2801SR
D-Link’s 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors. The D-Link 25G SFP28 Module Series transceivers offer customers a wide variety of 25G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
CertificationMSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2
Depth13.7 mm
Fiber ethernet cabling technology25GBASE
Fiber optic connectorLC
Height8.5 mm
Hot-Plug supportY
Input voltage3.3 V
Interface typeSFP28
Maximum current0.3 A
Maximum data transfer rate25000 Mbit/s
Maximum transfer distance100 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 70 °C
Rx power (max)2.4 dBmW
Rx power (min)-11 dBmW
SFP transceiver typefiber optic
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 85 °C
Tx power (max)2.4 dBmW
Tx power (min)-9.1 dBmW
Wavelength850 nm
Weight25 g
Width57.3 mm
Multi-mode fiber (MMF) supportedY
Fiber cable diameters supported (core/cladding)50/125 µm
SFP transceiver standardSR

dem-s2801sr.pdf

D-Link DEM-S2801SR Data Sheet

Download (479.81k)
