High-Speed Network Transmission for Business Environments

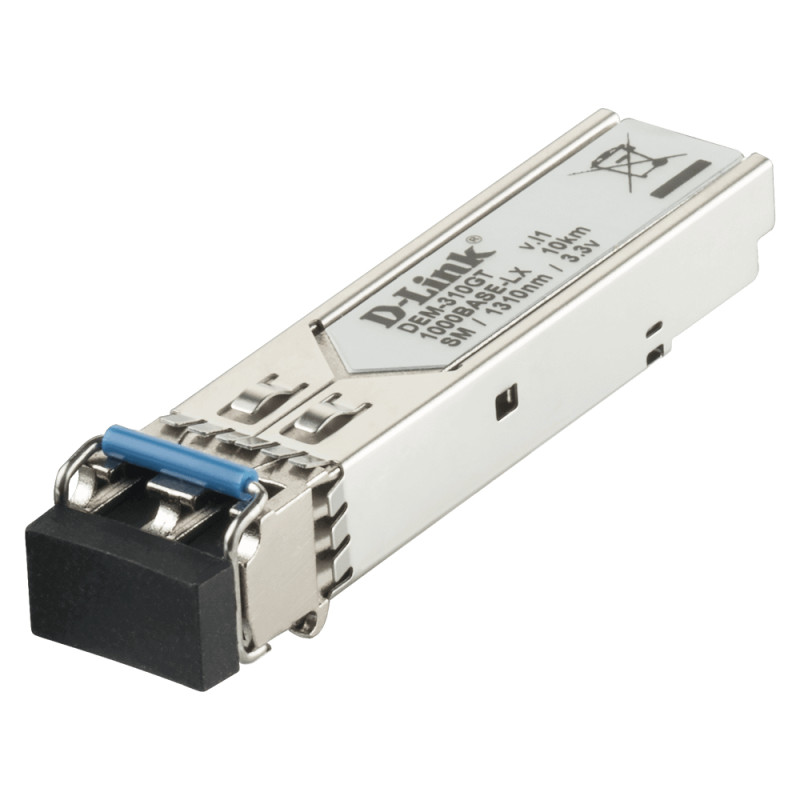

The DEM-310GT is a high-performance 1310 nm single-mode SFP transceiver supporting full-duplex Gigabit speeds for distances of up to 10 km. The unit features a metal housing to reduce EMI and to increase durability.

Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

Multiple Applications
Applications of the DEM-300 Series fiber transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.

Small Form Pluggable (SFP) Package
The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.
CertificationFCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL
Depth56.4 mm
Duplex systemFull
Fiber ethernet cabling technology1000Base
Fiber optic connectorLC
Form factorSFP
Height10.35 mm
Hot-Plug supportY
Input voltage3.3 V
Interface typeSFP
Maximum current0.3 A
Maximum data transfer rate1000 Mbit/s
Maximum operating temperature70 °C
Maximum transfer distance10000 m
Networking standardsIEEE 802.3x,IEEE 802.3z
Number of products included10 pc(s)
Operating relative humidity (H-H)10 - 90 %
Rx power (max)-3 dBmW
SFP transceiver typeCopper
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 85 °C
Tx power (max)-3 dBmW
Tx power (min)-21 dBmW
Wavelength1310 nm
Weight16.5 g
Width13.4 mm
RX sensitivity-21 dB
Link budget11.5 dB
Single-mode fiber (SMF) supportedY
Multi-mode fiber (MMF) supportedY
Product colourBlack,Stainless steel
Fiber cable diameters supported (core/cladding)9/125 µm
Sustainability complianceY
Compliance certificatesRoHS

dem-310gt10.pdf

D-Link DEM-310GT Data Sheet

Download (202.51k)
