A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With scalable power, distribution and run-time, this UPS grows with your data center up to 96kW/96kVA. Suitable for small to medium data centers or individual zones of large data centers.
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Battery recharge time | 3.5 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 192 V |
| Colour of product | Black |
| Depth | 1070 mm |
| Efficiency | 95 % |
| Emergency Power Off (EPO) | Y |
| Form factor | Tower |
| Height | 1991 mm |
| Input connections | Hard Wire 5-wire (3PH + N + G) |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 340 V |
| Noise level | 63 dB |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output connections | (1) Hard Wire 5-wire (3PH + N + G) (Battery Backup) |
| Output operation voltage (max) | 400 V |
| Output operation voltage (min) | 230 V |
| Output power | 96000 W |
| Package depth | 1210 mm |
| Package height | 2140 mm |
| Package weight | 1963000 g |
| Package width | 1696 mm |
| Power supply input frequency | 40 - 70 Hz |
| Serial interface type | RS-232 |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 40 °C |
| Waveform | Sine |
| Weight | 1814000 g |
| Width | 1200 mm |
| Output power capacity | 96000 VA |
| UPS topology | Double-conversion (Online) |
| Audible alarm(s) | Y |
| Serial interface | Y |
| SmartSlot | Y |
Similar products
-
APC Symmetra LX 4kVA
-
APC MGE Galaxy 300
-
APC MGE Galaxy 5500
-
APC Back-UPS Pro
-
APC Back-UPS Pro
APC Symmetra PX

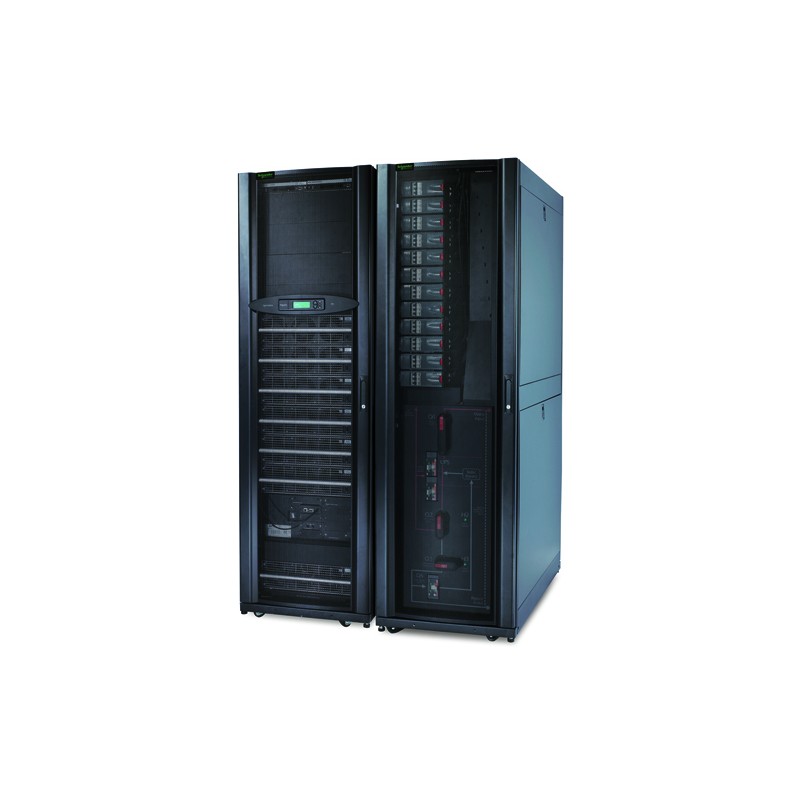

Symmetra PX 96kW Scalable, 400V with Modular Power Distribution
SY96K96H-PD
Out of Stock
£70,269.92
£58,558.27 Ex VAT.
