InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Modular design
Increases adaptability with an open architecture configurable to any IT environment.
Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
SmartSlot
Customize UPS capabilities with management cards.
Hot-swappable intelligence modules
Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Enables centralized management via APC InfraStruXure® Central.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Modular design
Increases adaptability with an open architecture configurable to any IT environment.
Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
SmartSlot
Customize UPS capabilities with management cards.
Hot-swappable intelligence modules
Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Battery recharge time | 3.50 h |
| Battery type | VRLA |
| Certification | cUL Listed,CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,UL Listed,VFI-SS-111 |
| Colour of product | Black |
| Dimensions (WxDxH) | 2350 x 1070 x 1991 mm |
| Emergency Power Off (EPO) | Yes |
| Hot-swap battery | Yes |
| Input connection type | Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| Interface | Smart-Slot |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output connections | 1x Hard Wire 4-wire (3PH + G) 1x Hard Wire 5-wire (3PH + N + G) |
| Output power | 100000 W |
| Package dimensions (WxDxH) | 2990 x 1270 x 2150 mm |
| Power supply input frequency | 40/70 Hz |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 40 °C |
| Weight | 2632730 g |
| Output power capacity | 100000 VA |
Similar products
-
APC Symmetra LX 4kVA
-
APC MGE Galaxy 300
-
APC MGE Galaxy 5500
-
APC Back-UPS Pro
-
APC Back-UPS Pro
APC SY100K250DR-PD

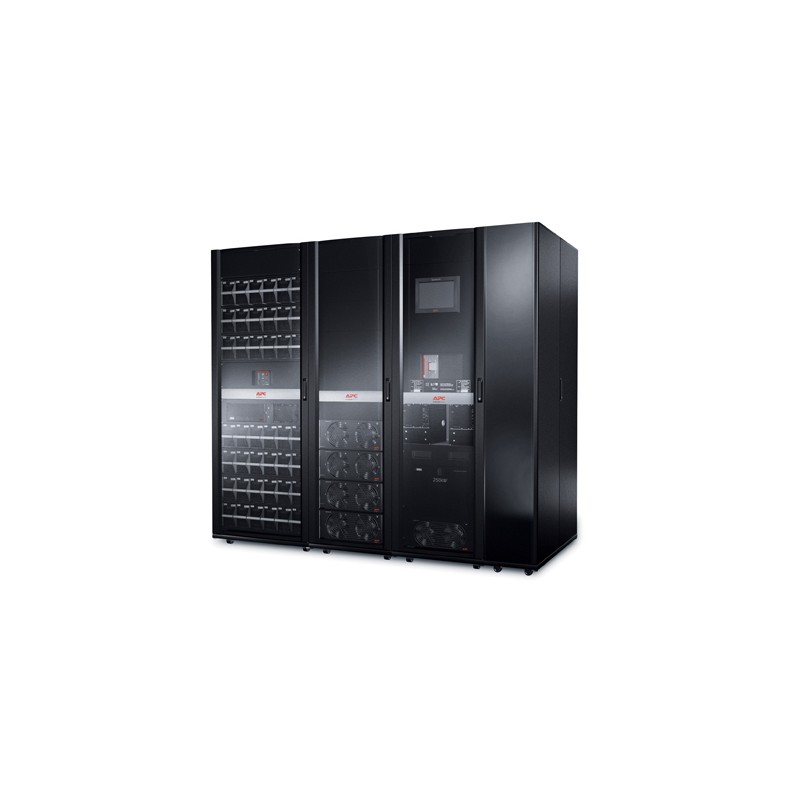

Symmetra PX 100kW Scalable to 250kW with Right Mounted Maintenance Bypass and Distribution
SY100K250DR-PD
Out of Stock
£87,588.46
£72,990.38 Ex VAT.
