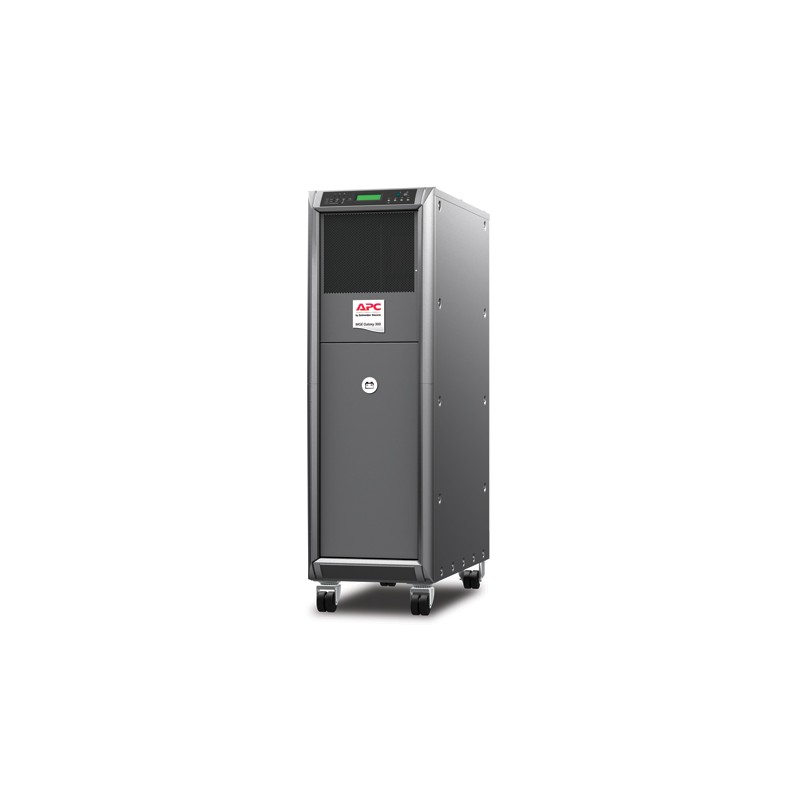

APC MGE Galaxy 300
  • APC MGE Galaxy 300
  • APC MGE Galaxy 300
  • APC MGE Galaxy 300
  • APC MGE Galaxy 300
  • APC MGE Galaxy 300
  • APC MGE Galaxy 300
Availability



Wide input voltage range

Designed for harsh electrical environments to save battery life.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Parallel-redundant capable

Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy

Dual feed input

Allows installation of two independent power sources with the option of hot stand-by configuration to provide redundancy for mission critical applications.



Serviceability



5x8 Start-up service included

Required for full coverage of factory warranty

Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.



Economy



Cost of acquisition

Designed to provide an optimized price/performance ratio, a number of exceptional features have been carefully selected to optimize both performance and cost benefits.



Convenience



Easy to install

Innovative design allows for fast, easy installation by almost anybody.



Manageability



Integrated network management

Provides complete remote monitoring and control of the UPS. Enables you to monitor remote UPS's from a web browser or industry standard Network Management System.
Battery recharge time10 h
Battery technologySealed Lead Acid (VRLA)
Battery voltage192 V
Colour of productGrey,Metallic
Cooling typeactive
Crest factor2.5:1
Depth860 mm
DisplayLCD
Efficiency92.4 %
Ethernet LAN (RJ-45) ports1
Height1300 mm
Input current THD7 %
Input operation voltage (max)477 V
Input operation voltage (min)340 V
Maximum current19 A
Noise level54.5 dB
Non-operating altitude0 - 9000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 35 °C
Output operation voltage (max)415 V
Output operation voltage (min)220 V
Output power8000 W
Output voltage THD5 %
Package depth965 mm
Package height1440 mm
Package weight330000 g
Package width800 mm
Power supply input frequency45/65 Hz
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-10 - 60 °C
WaveformSine
Weight305000 g
Width400 mm
Output power capacity10000 VA

G3HT10KHB2S.pdf

APC MGE Galaxy 300 Data Sheet

Download (204.06k)

Similar products

  • APC Symmetra LX 4kVA
    APC Symmetra LX 4kVA
  • APC MGE Galaxy 5500
    APC MGE Galaxy 5500
  • APC Back-UPS Pro
    APC Back-UPS Pro
  • APC Back-UPS Pro
    APC Back-UPS Pro

APC MGE Galaxy 300

MGE Galaxy 300, 10kVA, 400V, 3:3 with 30min Battery, Start-up 5x8

G3HT10KHB2S

Out of Stock

£6,658.83
£5,549.02 Ex VAT.
