APC Parallel Maintenance Bypass
  • APC Parallel Maintenance Bypass
  • APC Parallel Maintenance Bypass
  • APC Parallel Maintenance Bypass
  • APC Parallel Maintenance Bypass
  • APC Parallel Maintenance Bypass
Built-in Web/SNMP management

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.



Environmental monitoring

Prevent equipment failure from a full range of threatening environmental conditions.



Audible alarms

Provides notification of changing utility power and UPS power conditions



LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.



Multiple levels of service

With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.



7x24 telephone technical support

Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.



Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.



User-replaceable air filters

Enables quick and simple replacement of air filters.



Battery replacement without tools

Enables fast battery replacement, lowering Mean Time to Repair (MTTR).



Excellent footprint

Small UPS footprint provides maximum usage of valuable electrical room floorspace



Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Advanced electrical features

Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency



Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.



Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Parallel-capacity capable

Increases total power capacity by using multiple uninterruptible power supplies simultaneously.



Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.



EU CoC for UPS

Ensures that UPSs sold in the EU are highly efficient
CertificationEN 50091-2, EN/IEC 62040-1-1, EN/IEC 62040-3, VFI-SS-111
Colour of productGrey
Depth800 mm
Height120 mm
Input operation voltage (max)400 V
Input operation voltage (min)220 V
Non-operating altitude0 - 9000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Output connections(1) Hard Wire 3-wire (H N + G) (Battery Backup)
Package depth800 mm
Package height1600 mm
Package weight120000 g
Package width1200 mm
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Weight100000 g
Width1010 mm

Similar products

  • APC Symmetra LX 4kVA
    APC Symmetra LX 4kVA
  • APC MGE Galaxy 300
    APC MGE Galaxy 300
  • APC MGE Galaxy 5500
    APC MGE Galaxy 5500
  • APC Back-UPS Pro
    APC Back-UPS Pro
  • APC Back-UPS Pro
    APC Back-UPS Pro

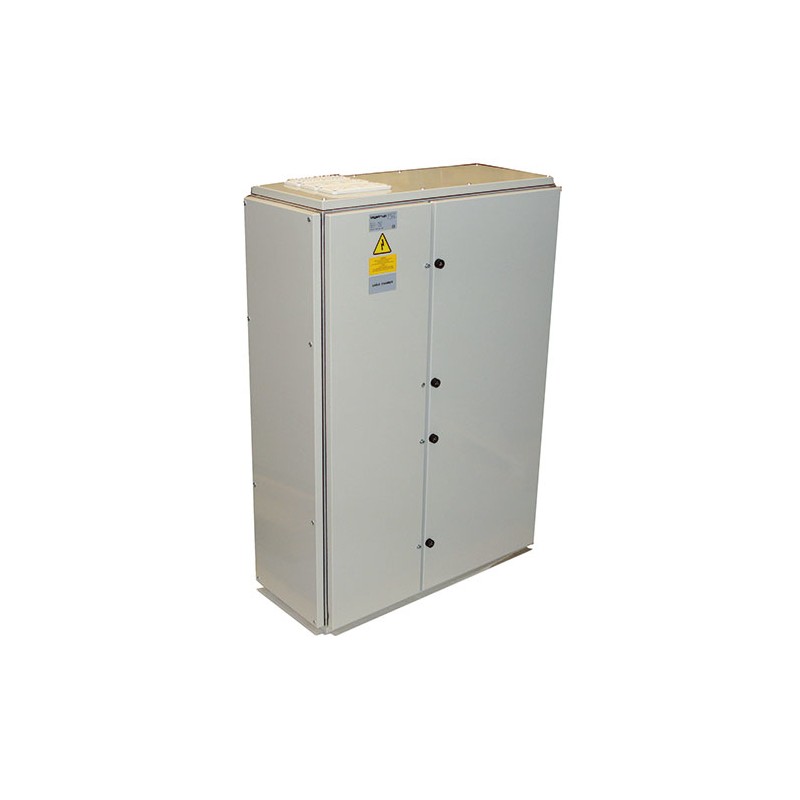

APC Parallel Maintenance Bypass

Parallel Maintenance Bypass for 2 UPS (1+1) 3:1 15-20kVA Wallmount

SBPAR3I15K20R2M2-WP

Out of Stock

£6,069.47
£5,057.89 Ex VAT.
