Please Note, this product is not for consumer use in the European Union.
Over 10 million currently installed - the one you can trust.AC outlet types | C13 coupler |
AC outlets quantity | 4 AC outlet(s) |
Auto-restart | Yes |
Automatic battery test | Yes |
Automatic Voltage Regulation (AVR) | Yes |
Battery capacity | 216 VAh |
Battery replacement alarms | LED |
Battery technology | Sealed Lead Acid (VRLA) |
Bundled software | PowerChute Smart-UPS Bundle |
Cables included | RS-232,USB cable |
Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI |
Colour of product | Black |
Depth | 660 mm |
Dimensions (WxDxH) | 431.8 x 660.4 x 43.7 mm |
Filtering | 0.3% IEEE |
Form factor | Rackmount |
Height | 44 mm |
Hot-swap battery | Yes |
I/O ports | DB-9 RS-232, SmartSlot, USB |
Input connection type | IEC-320 C14 |
Input connections | IEC-320 C14 |
Input operation voltage (max) | 302 V |
Input operation voltage (min) | 151 V |
LED indicators | Yes |
Manual | Yes |
Noise level | 55 dB |
Nominal input voltage | 230 V |
Nominal output voltage | 230 V |
Non-operating altitude | 0 - 15000 m |
Number of output IEC jumpers | 2 |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating relative humidity range | 0 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (4)IEC 320 C13 (2)IEC Jumpers |
Output power | 480 W |
Output power capacity (VA) | 750 VA |
Package depth | 775 mm |
Package height | 191 mm |
Package weight | 25450 g |
Package width | 559 mm |
Power supply input frequency | 50/60 Hz |
Quantity per pallet | 8 pc(s) |
Rack capacity | 1U |
Rack mount kit | Yes |
Replacement battery cartridge | RBC34 |
RoHS compliance | Yes |
Serial interface type | RS-232 |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 0 - 95 % |
Storage relative humidity range | 0 - 95 % |
Storage temperature (T-T) | -15 - 45 °C |
Storage temperature range (T-T) | -15 - 45 °C |
Surge energy rating | 480 J |
Surge protection | Yes |
Typical backup time at full load | 7.1 min |
Typical backup time at half load | 23.6 min |
USB port | Yes |
Waveform | Sine |
Weight | 21820 g |
Width | 432 mm |
Output power capacity | 750 VA |
UPS topology | Line-Interactive |
Audible alarm(s) | Yes |
Software CD | Yes |
Serial interface | Yes |
SmartSlot | Yes |

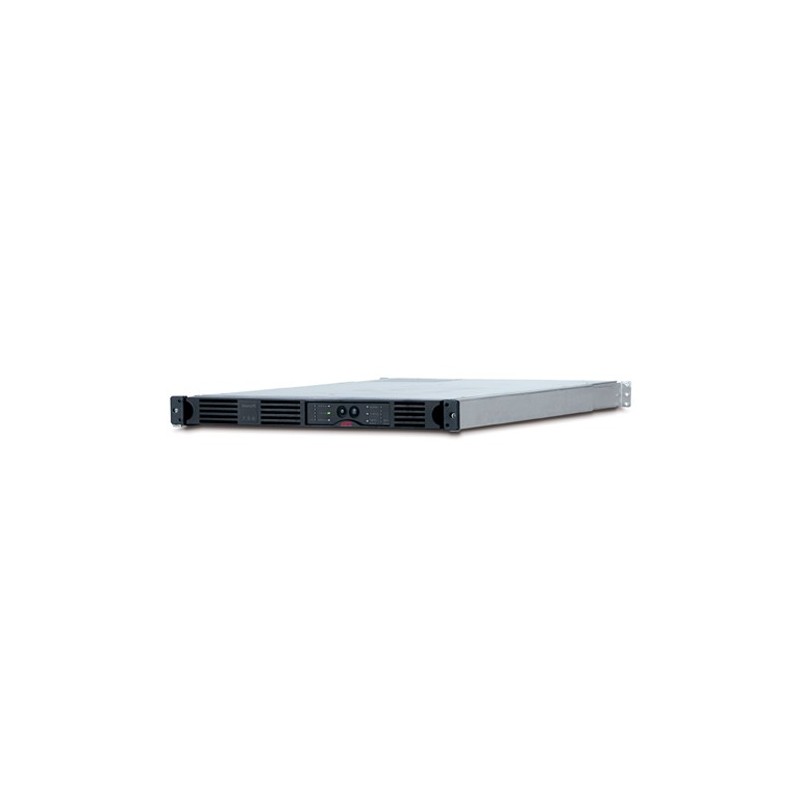

APC Smart-UPS, 750VA/480W, Input 230V/ Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB
SUA750RMI1U
Out of Stock
