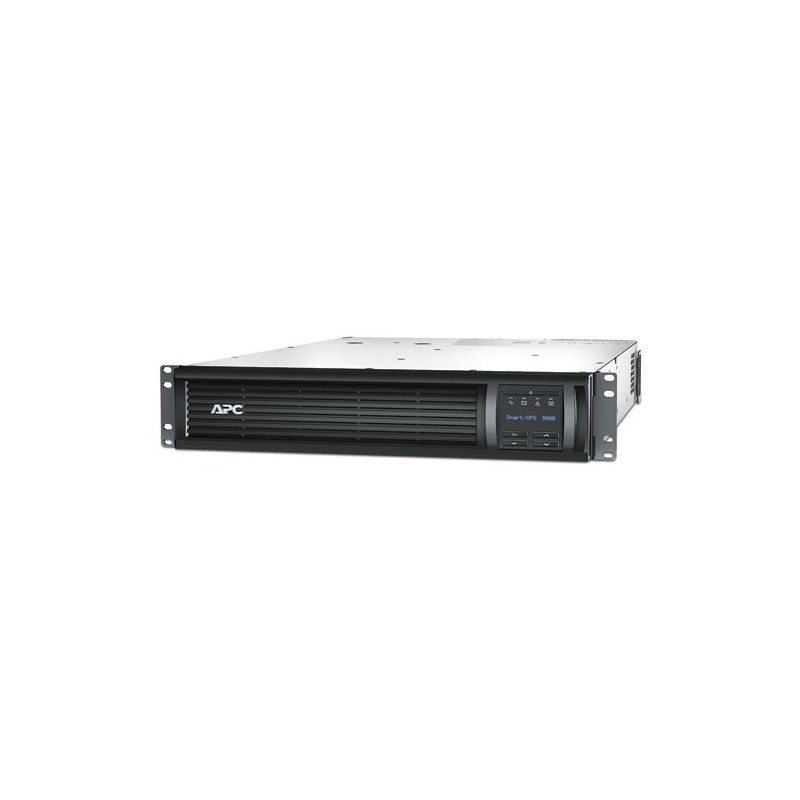

APC SMT3000RMI2U Smart-UPS 3000VA LCD RM 2U 230V
  • APC SMT3000RMI2U Smart-UPS 3000VA LCD RM 2U 230V
  • APC SMT3000RMI2U Smart-UPS 3000VA LCD RM 2U 230V

Please Note, this product is not for consumer use in the European Union.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.



Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.



Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.



Energy meter

Provides actual kilowatt hours of usage for energy conscious users.



Outlet group control

Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).



Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).



Audible alarms

Provide notification of changing flywheel conditions



InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.



Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.



Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.



Wide input voltage range

Designed for harsh electrical environments to save battery life.



Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance



High online efficiency

Reduces utlility costs, generates less heat.



LED Indicators

Provide easy-to-read status of your utility power conditions, UPS and battery.



Cold-start capable

Provides temporary battery power when the utility power is out.



Serial Connectivity

Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.



Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.



Audible alarms

Provides notification of changing utility power and UPS conditions.



User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Serial Connectivity

Provides management of the UPS via a serial port.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.



Network manageable

Provides remote management of the UPS over the network.



Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.



Adjustable voltage sensitivity

Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.



Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Auto-restartYes
Automatic battery testYes
Automatic Voltage Regulation (AVR)Yes
Battery capacity547 VAh
Battery life (max)5 year(s)
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Cable length2 m
Cables includedRS-232,USB cable
CertificationCE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
Cold startYes
Colour of productBlack
Compatibility2u
Depth683 mm
Efficiency99 %
Energy Star certifiedYes
Form factorRackmount
Height86 mm
Hot-swap batteryYes
Input connection typeBS1363A, IEC-320 C20, CEE 7/EU1-16P
Input connectionsBS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input operation voltage (max)302 V
Input operation voltage (min)151 V
InterfaceUSB
LED indicatorsStatus
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Number of output IEC jumpers3
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connectionsIEC 320 C13 IEC 320 C19 IEC Jumpers
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power2700 W
Output power capacity (VA)3000 VA
Package depth980 mm
Package dimensions (WxDxH)600 x 980 x 254 mm
Package height254 mm
Package weight51700 g
Package width600 mm
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Quick installation guideYes
Rack capacity2U
Rack mount kitYes
Replacement battery cartridgeSMT3000RMI2UNC
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating320 J
Typical backup time at full load3.2 min
Typical backup time at half load11.5 min
USB portYes
WaveformSine
Weight44280 g
Width480 mm
Output power capacity3000 VA
UPS topologyLine-Interactive
Audible alarm(s)Yes
Hold time (min)4 ms
Hold time (max)8 ms
Software CDYes
