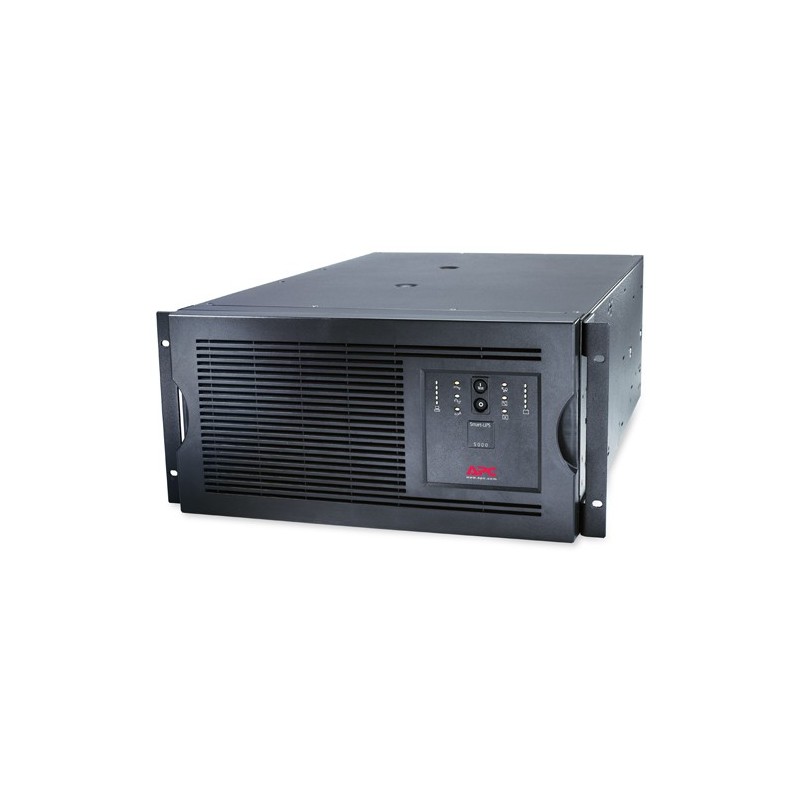

APC SUA5000RMI5U Smart-UPS 5000VA 230V Rackmount/Tower
  • APC SUA5000RMI5U Smart-UPS 5000VA 230V Rackmount/Tower
  • APC SUA5000RMI5U Smart-UPS 5000VA 230V Rackmount/Tower
  • APC SUA5000RMI5U Smart-UPS 5000VA 230V Rackmount/Tower

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U



Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card



Standard Lead Time: Usually Ships within 4 Weeks



-Adjustable voltage-transfer points.

-Audible alarms.

-Automatic self-test.

-Boost and Trim Automatic Voltage Regulation (AVR).

-Cold-start capable.

-Disconnected battery notification.

-Hot-swappable batteries.

-LED status indicators.

-Network manageable.

-Plug-and-Play installation.

-Rack/Tower convertible.

-Resettable circuit breakers.

-Safety-agency approved

-Serial Connectivity.

-SmartSlot.

-Temperature-compensated battery charging.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity10 AC outlet(s)
Auto-restartYes
Automatic battery testYes
Automatic Voltage Regulation (AVR)Yes
Battery capacity1632 VAh
Battery life (max)5 year(s)
Battery recharge time3 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Battery typeVRLA
Cables includedRS-232
CertificationC-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
Cold startYes
Colour of productBlack
Depth660 mm
Dimensions (WxDxH)483 x 660 x 222 mm
Efficiency96 %
Form factorRackmount/Tower
Height222 mm
Hot-swap batteryYes
Input connection typeHard Wire 3-wire
Input connections
Input operation voltage (max)302 V
Input operation voltage (min)151 V
LED indicatorsYes
ManualYes
Noise level53 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Number of output IEC jumpers4
Number of output phases1
Operating altitude0 - 9000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections8 - IEC 320 C13 2 - IEC 320 C19 6 - IEC Jmpr
Output frequency regulation47 - 53 Hz
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power4000 W
Output power capacity (VA)5000 VA
Output voltage note230-240 V
Package depth762 mm
Package height635 mm
Package weight106820 g
Package width610 mm
Packaging content
Power supply input frequency50/60 Hz
Quantity per pallet4 pc(s)
Quick installation guideYes
Rack capacity5U
Rack mount kitYes
Replacement battery cartridgeRBC55
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating480 J
Surge protectionYes
Typical backup time at full load9.4 min
Typical backup time at half load26.7 min
WaveformSine
Weight97730 g
Width483 mm
Output power capacity5000 VA
UPS topologyLine-Interactive
Audible alarm(s)Yes
Quantity per master carton1 pc(s)
Hold time (min)2 ms
Hold time (max)4 ms
Software CDYes
