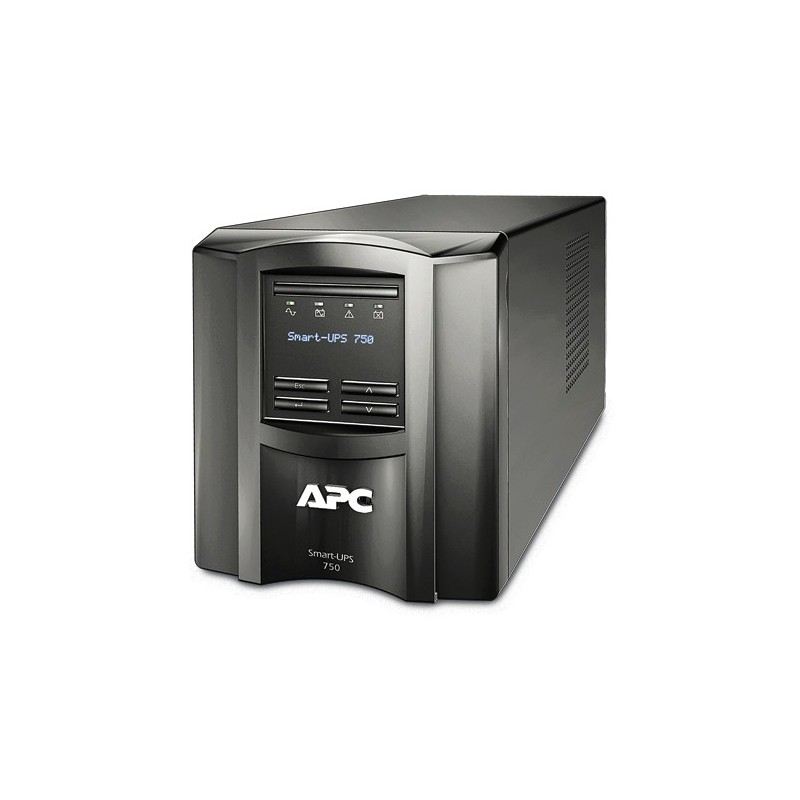

APC SMT750I Smart 750VA LCD 230V
  • APC SMT750I Smart 750VA LCD 230V
  • APC SMT750I Smart 750VA LCD 230V

Please Note, this product is not for consumer use in the European Union.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.



Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.



Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.



Energy meter

Provides actual kilowatt hours of usage for energy conscious users.



Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.



High online efficiency

Reduces utlility costs, generates less heat.



SmartSlot

Customize UPS capabilities with management cards.



Cold-start capable

Provides temporary battery power when the utility power is out.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
AC outlet typesC13 coupler
AC outlets quantity6 AC outlet(s)
Auto-restartYes
Automatic battery testYes
Automatic Voltage Regulation (AVR)Yes
Battery capacity146 VAh
Battery life (max)5 year(s)
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Cable length1.83 m
Cables includedRS-232,USB cable
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Cold startYes
Colour of productBlack
Depth358 mm
Dimensions (WxDxH)161 x 138 x 363 mm
DisplayLCD
Efficiency98 %
Emergency Power Off (EPO)O
Ethernet LAN (RJ-45) ports quantity1
Form factorTower
Height157 mm
Hot-swap batteryYes
Input connection typeIEC-320 C14
Input connectionsIEC-320 C14
Input operation voltage (max)302 V
Input operation voltage (min)151 V
LED indicatorsStatus
Noise level40 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Number of output IEC jumpers2
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections6 x IEC 320 C13
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power500 W
Output power capacity (VA)750 VA
Output voltage note220/230/240
Package depth499 mm
Package dimensions (WxDxH)301 x 278 x 499 mm
Package height301 mm
Package weight14230 g
Package width278 mm
Power supply input frequency50/60 Hz
Quantity per pallet24 pc(s)
Quick installation guideYes
Replacement battery cartridgeRBC48
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating540 J
Surge protectionYes
Typical backup time at full load4.6 min
Typical backup time at half load15.8 min
USB portYes
WaveformSine
Weight13180 g
Width138 mm
Output power capacity750 VA
UPS topologyLine-Interactive
Audible alarm(s)Yes
Hold time (min)4 ms
Hold time (max)8 ms
Software CDYes
SmartSlotYes
