Agile traffic control for converged networking applications
ZyXEL XGS2210/GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses andeducational institutions greater agility and more effective traffic management for the converged applications of today.
ZyXEL One Network experience
Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
High-powered Power over Ethernet (PoE)
The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
High-powered Power over Ethernet (PoE)
The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
ZyXEL XGS2210/GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses andeducational institutions greater agility and more effective traffic management for the converged applications of today.
ZyXEL One Network experience
Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
High-powered Power over Ethernet (PoE)
The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
High-powered Power over Ethernet (PoE)
The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Cables included | AC |
| Certification | RoHS |
| Colour of product | Black |
| Depth | 330 mm |
| DHCP client | Y |
| Electromagnetic compatibility | FCC 15 (A), CE (A), BSMI |
| Flow control support | Y |
| Form factor | 1U |
| Heat dissipation | 1483.4 BTU/h |
| Height | 44.5 mm |
| IGMP snooping | Y |
| IP routing | Y |
| Jumbo frames support | Y |
| LED indicators | Power,Status |
| Link aggregation | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| MIB support | RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 42.075 dB |
| Number of queues | 8 |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package depth | 452 mm |
| Package height | 97 mm |
| Package weight | 6400 g |
| Package width | 586 mm |
| Port mirroring | Y |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Y |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Safety | LVD, BSMI |
| Security algorithms | 802.1x RADIUS,SNMP,SSH,SSH-2 |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 128 Gbit/s |
| System event log | Y |
| Throughput | 95.2 Mpps |
| Total Power over Ethernet (PoE) budget | 375 W |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 5060 g |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 9000 |
| Private VLAN | Y |
| SFP+ module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Port-based VLAN | Y |
| Protocol-based VLAN | Y |
| MAC address auto-learning supported | Y |
| Authentication | MAC-based authentication |
| Traffic shaping | Y |
Similar products
-
ZyXEL GS1900-8
-
ZyXEL XGS4600-32
-
ZyXEL XGS4600-32F
-
ZyXEL RGS200-12P
-
ZyXEL RGS100-5P

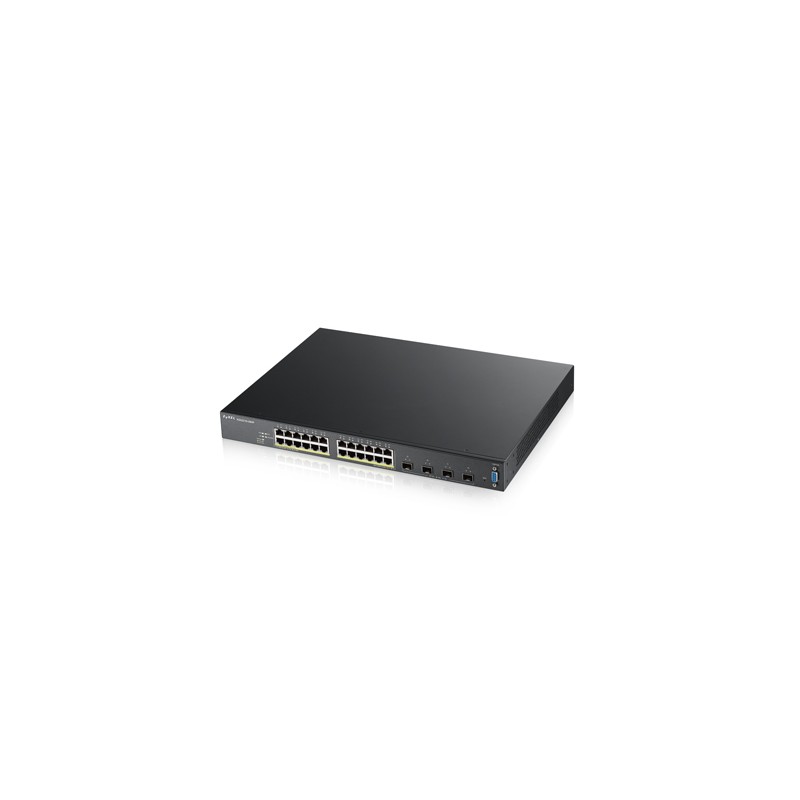

ZyXEL XGS2210-28HP
