10G support | Yes |
AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Certification | FCC Part 15 (Class A)\nCE EMC (Class A) |
Colour of product | Black |
Combo SFP ports quantity | 4 |
Console port | RS-232 |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Depth | 270 mm |
Flash memory | 64 MB |
Flow control support | No |
Heat dissipation | 204.94 BTU/h |
Height | 44 mm |
IGMP snooping | Yes |
Internal memory | 1000 MB |
IP routing | Yes |
Link aggregation | Yes |
MAC address table | 32000 entries |
Mean time between failures (MTBF) | 794270.06 h |
MIB support | Yes |
Multicast support | Yes |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Noise level | 60.3 dB |
Number of IP interfaces | 256 |
Operating relative humidity (H-H) | 10 - 95 % |
Operating temperature (T-T) | 0 - 50 °C |
Package depth | 335 mm |
Package height | 107 mm |
Package weight | 5830 g |
Package width | 616 mm |
Packet buffer memory | 4 MB |
Power consumption (max) | 60.1 W |
Power over Ethernet (PoE) | No |
Quality of Service (QoS) support | Yes |
Rack mount kit | Yes |
Rack mounting | Yes |
Routing entries | 12000 |
Safety | ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
Security algorithms | SSH,SSH-2,SSL/TLS |
Spanning tree protocol | Yes |
Storage relative humidity (H-H) | 10 - 95 % |
Storage temperature (T-T) | -40 - 70 °C |
Switch layer | L3 |
Switch type | Managed |
Switching capacity | 136 Gbit/s |
Throughput | 101.1 Mpps |
VLAN support | Yes |
Weight | 4210 g |
Width | 441 mm |
SFP module slots quantity | 24 |
SFP+ module slots quantity | 4 |
Authentication | Port-based authentication |
Tagged VLAN | Yes |

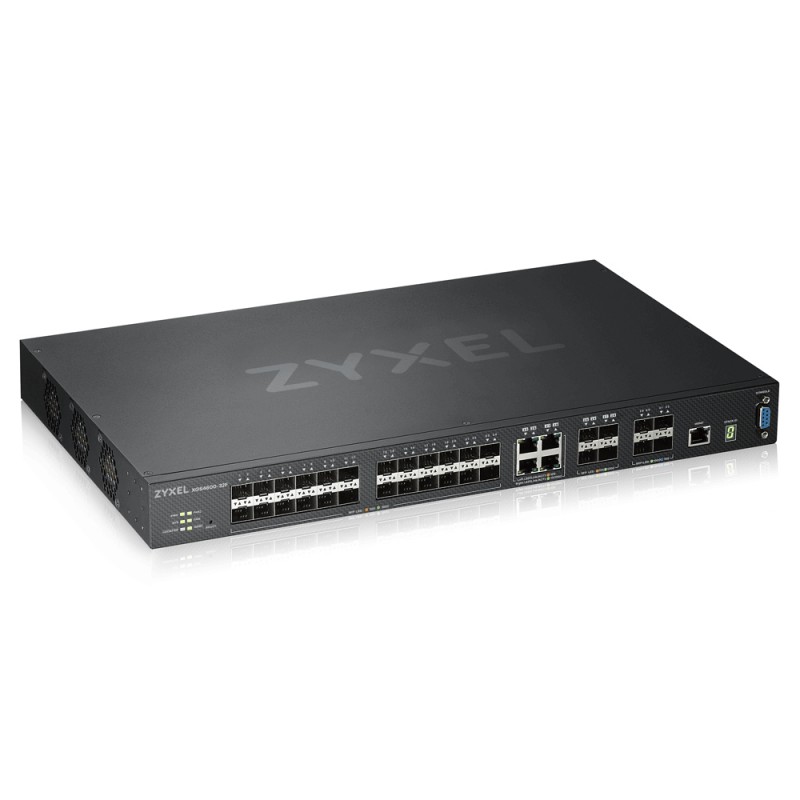

24 x Gigabit SFP, 4 x combo (SFP/RJ-45), 4 x SFP+, 136 Gbps, 101.1 Mpps, 32K MAC, 64 MB Flash, 1 GB RAM, 100 - 240 V, 50 - 60 Hz, 60.1 W, 441 x 270 x 44 mm, 4.21 kg
XGS4600-32F-ZZ0102F
Stock Due 01-02-2025
