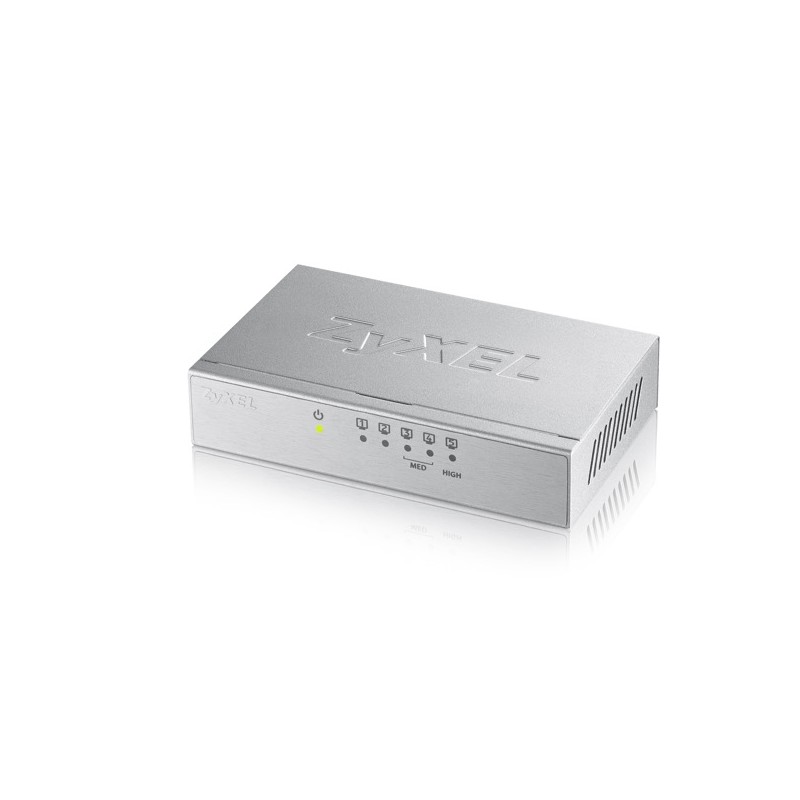

ZyXEL GS-105B v3
  • ZyXEL GS-105B v3
  • ZyXEL GS-105B v3
  • ZyXEL GS-105B v3
  • ZyXEL GS-105B v3
  • ZyXEL GS-105B v3
Optimized for Smooth VoIP and Data Exchange

The ZyXEL GS-105B v3 5-Port Desktop Gigabit Ethernet Switch connects network devices and the home network at blazing Gigabit speed. The newly designed QoS ports guarantee smooth transfer for bandwidthintensive applications such as VoIP and data communications.



Compact, sturdy switch with alternative wall-mount design

The GS-105B v3 fits any environment. Regardless of desktop or wallmount installation, its sturdy, compact design provides more flexibility for wired home networks.



Fast, reliable wired connectivity

Without any manual configuration, the GS-105B v3 can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at blazing-fast Gigabit speed.



Optimized for smooth VoIP and data exchange

The GS-105B v3 has 3 QoS ports with an assigned high- and mediumpriority mechanism to enhance the stability of VoIP and data exchange. Just connect network devices such as IP phones, PCs, laptops or network storages to the high-priority or medium-priority ports of your choice, you can then enjoy smooth VoIP communication and data transfer at the same time.



Green switch saves energy

Compliant with the IEEE 802.3az Energy Efficient Ethernet standard, the GS-105B v3 provides power-saving benefits without compromising performance. The GS-105B v3 can automatically adjust power consumption according to the number of active, connected network devices and cable length; that is, it consumes less power if fewer network devices are connected and active, or when the length of Ethernet cable is shorter.
10G supportNo
AC input voltage100-240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC Class B, BSMI
Colour of productSilver
Depth75 mm
Flow control supportY
Full duplexY
Height26 mm
Jumbo frames supportY
Link aggregationY
MAC address table2000 entries
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 95 %
Operating temperature (T-T)0 - 50 °C
Output current1 A
Output voltage5 V
Package depth82 mm
Package height95 mm
Package weight381 g
Package width127 mm
Power consumption (typical)2.5 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportY
Rack mountingNo
Rate limitingY
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch layerL2+
Switch typeUnmanaged
Switching capacity10 Gbit/s
Weight229 g
Width121 mm
Jumbo frames9000
