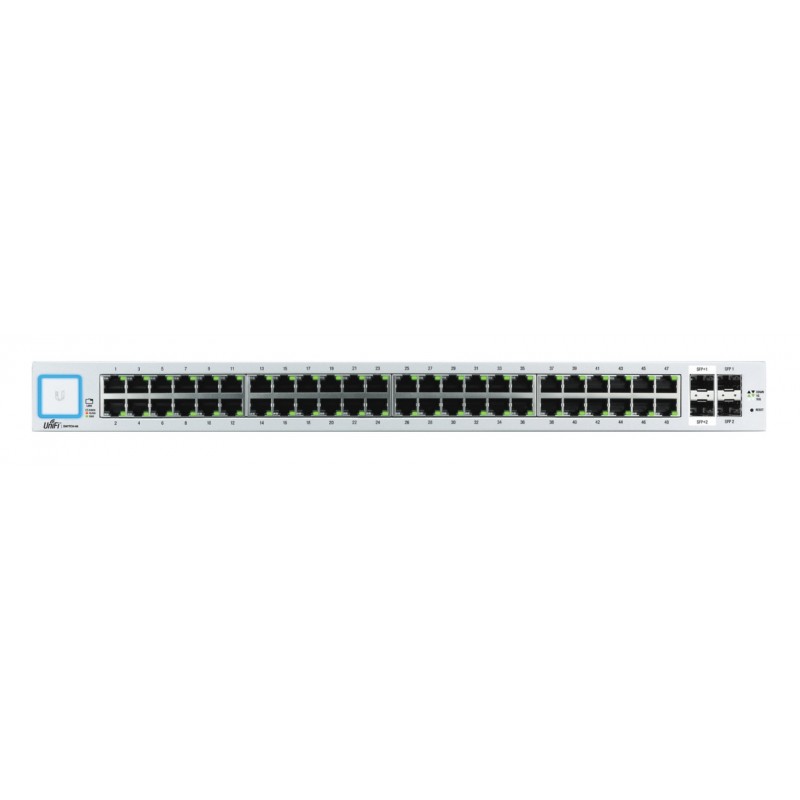

Ubiquiti Networks US-48
  • Ubiquiti Networks US-48
  • Ubiquiti Networks US-48
Managed Gigabit Switches with SFP

Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.



Powerful Enterprise Switch Models

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‐blocking throughput, the 24‐port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.



Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.



Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.



Non-Blocking Throughput

For its total, non‐blocking throughput, the 24‐port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.



Switching Capacity

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.



Versatile Mounting Options

The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.



Seamless Integration

The UniFi Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productWhite
Compatible operating systemsLinux, Mac OS X, or Microsoft Windows 7/8/10
Console portRJ-45
Depth286 mm
Flow control supportY
Form factor1U
Height43 mm
LED indicatorsActivity,Link,Speed
Mounting brackets includedY
Noise level37 dB
Number of fans1 fan(s)
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 40 °C
Port mirroringY
Power consumption (max)56 W
Power over Ethernet (PoE)No
Quick start guideY
Rack mountingYes
Reset buttonY
Security algorithms802.1x RADIUS
Spanning tree protocolY
Switch typeManaged
Switching capacity140 Gbit/s
Weight3560 g
Width443 mm
SFP module slots quantity2
SFP+ module slots quantity2

US-48.pdf

Ubiquiti Networks US-48 Data Sheet

Download (5.14M)
