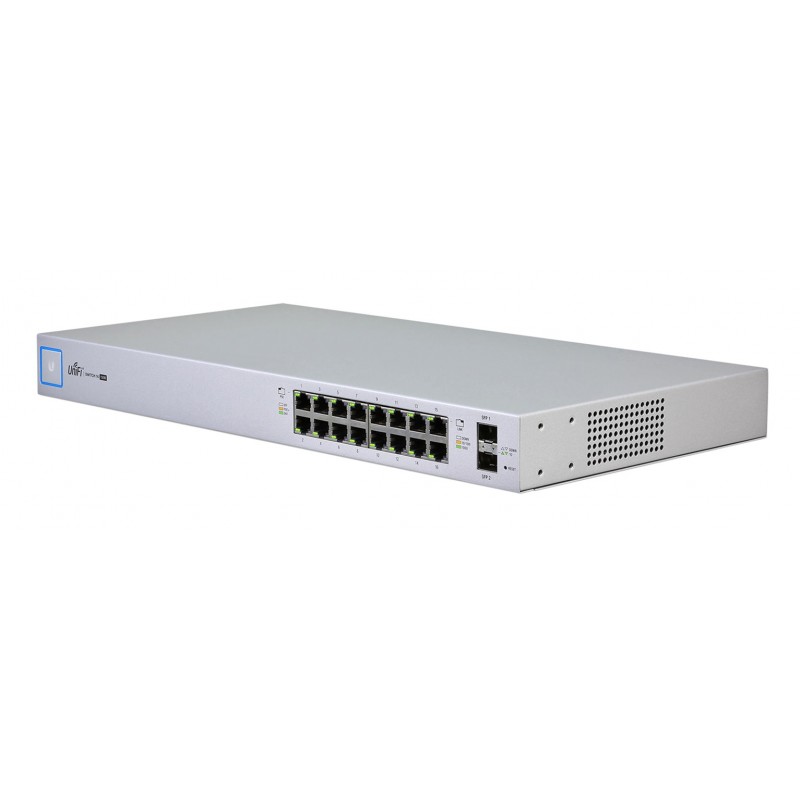

Ubiquiti Networks US-16-150W
  • Ubiquiti Networks US-16-150W
  • Ubiquiti Networks US-16-150W
Managed PoE+ Gigabit Switch with SFP

The UniFi® Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.



Versatile Mounting Options

The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.



Versatile Port Configuration

Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.



Integration with UniFi Controller

The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.



Advanced Enterprise Switching

The UniFi Switch supports VLAN tagging, port isolation, storm control, and guest control.
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Cable managementY
Cables includedAC
CertificationCE, FCC, IC
Colour of productWhite
Console portRJ-45
Depth221 mm
Flow control supportY
Form factor1U
Full duplexY
Height43 mm
Jumbo frames supportY
LED indicatorsActivity,Data,Link,PoE,Speed
Link aggregationY
Mounting brackets includedY
Networking standardsIEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 40 °C
Power consumption (typical)28 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Quick start guideY
Rack mount kitY
Rack mountingYes
Reset buttonY
Screws includedY
Spanning tree protocolY
Switch typeManaged
Switching capacity36 Gbit/s
Throughput26.78 Mpps
Total Power over Ethernet (PoE) budget150 W
VLAN supportY
Wall mountableY
Wall mounting kitY
Weight2890 g
Width443 mm
SFP module slots quantity2
Power over Ethernet (PoE) power per port34.2 W
Power over Ethernet (PoE) voltage range20 - 27 V

US-16-150W.pdf

Ubiquiti Networks US-16-150W Data Sheet

Download (6.36M)
