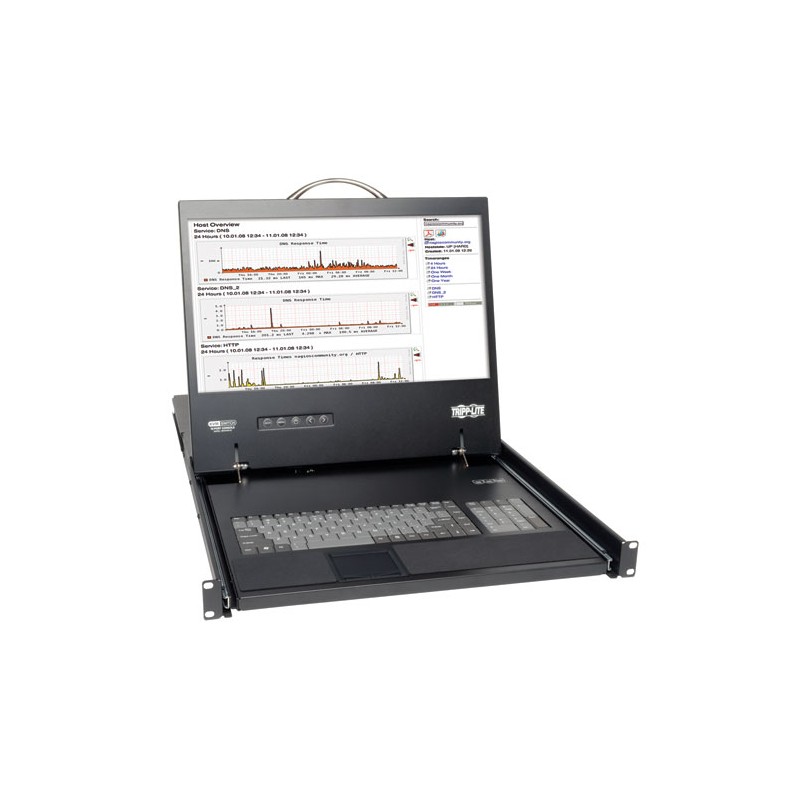

Tripp Lite’s B070-016-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.



The B070-016-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 30.5 m away from the switch. You can switch easily between the 16 ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19” LCD screen supports video resolutions up to 1366 x 768.



Add a Tripp Lite B051-000 IP Remote Access Unit and you’ll be able to connect to your servers from anywhere in the world. The B070-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.



Saves Space and Money



● Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium

● Mounts into 19”-wide rack, 27”-42” deep; can be mounted in 2-post rack with Tripp Lite’s B019-000

● Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use

● Eliminates need to buy costly monitors, keyboards and mice for each computer/server



Uses inexpensive Cat5e/6/6a Cables



● Low-cost cables lets you locate servers up to 30.5 m from the switch

● Use plug-and-play Server Interface Unit B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable

● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.



Simplifies IT Tasks



● Switch easily between the 16 ports via on-screen display or keyboard hot key commands

● Hot pluggable; add or remove USB computers without having to power down the switch

● Auto-scan mode automatically sequences through all active ports accessible to the user



Large 19” LCD



● Extra-wide display makes multitasking easier

● Supports video resolutions up to 1366 x 768

● DDC emulation allows optimal output to the LCD



Multi-Level Password Security



● Multi-level password security limits access to authorized users (administrator, supervisor or user)

● Two-level log-out allows manual log-out or automatic log-out after a user-defined period of time has passed



Expandability and Long-Lasting Reliability



● Control your servers from anywhere in the world over LAN, WAN or the Internet by adding a Tripp Lite B051-000 IP Remote Access Unit

● Compatible with all major operating systems for easy integration into your existing structure

● Firmware is upgradable with included cable and utility

● Heavy-duty steel housing stands up to frequent use



● Occupies just 1U of space in a rack-mountable drawer

● Low-cost Cat5 cabling allows longer distances, reduces cable clutter

● 19” LCD screen supports video resolution up to 1366 x 768

● Simplifies IT tasks with easy switching between all 16 ports



System Requirements



● Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports

● User-supplied Cat 5e/6/6a cabling

● B078-101-USB-1 (USB) Server Interface Unit is required for each connected computer/server

● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

● Compatible with all major operating systems

● Power consumption: 120V, 60Hz, 30W



Package Includes



● B070-016-19 1U rackmount console KVM switch with 19” LCD

● C13 to 5-15P power cord

● Serial firmware upgrade cable

● Jumper cable to connect KVM console ports to integrated console ports

● Rackmount hardware

● CD with owner's manual
