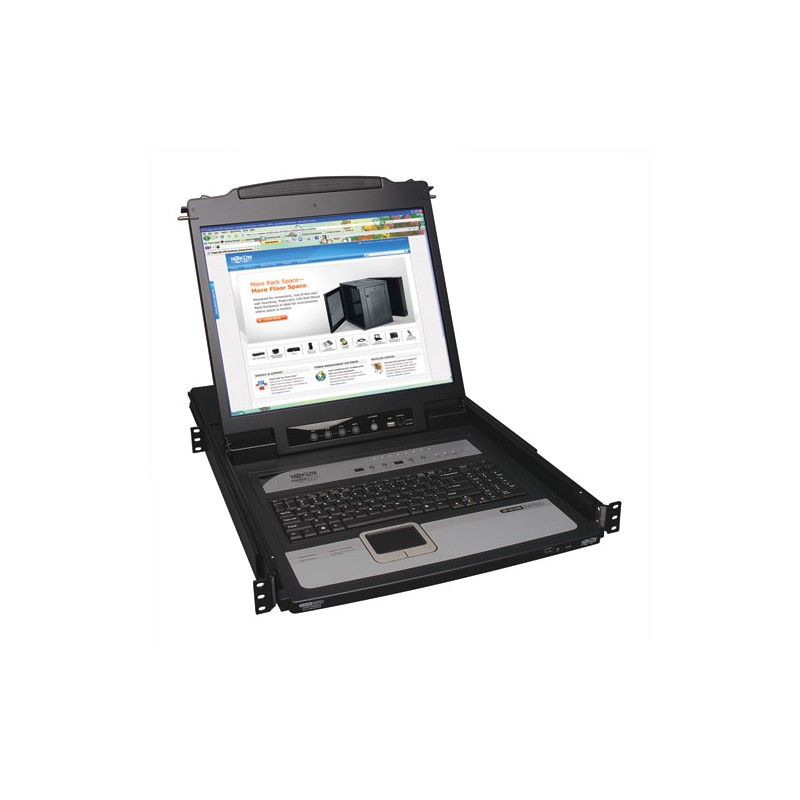

Tripp Lite’s B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.



The B020-U08-19-IP has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.



This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.



Saves Space and Money



● Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium

● Mounts into 19”-wide rack, 26”-38” deep

● Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use



IP Remote Access for Fewer Trips to the Server Room



● Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet

● Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping



Simplifies IT Tasks



● Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese

● Panel array mode lets you monitor multiple ports at same time

● Supports RADIUS and LDAP/S authentication

● Auto-scan mode automatically sequences through all active ports accessible to the user

● Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation

● Log server tracks events on your installation



Large 19” LCD



● Extra-wide display makes multitasking easier

● Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200

● DDC emulation allows for optimal output to the LCD



Advanced Security Features



● Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL

● Allows up to 64 user accounts, with 3 levels of access



Expandability and Long-Lasting Reliability



● Compatible with all major operating systems for easy integration into existing structure

● Firmware is upgradable so your software remains up-to-date

● Heavy-duty steel housing stands up to frequent use





● Control computers/servers locally or via LAN, WAN or Internet



● Occupies just 1U of space in a rack-mountable drawer



● 19” LCD screen supports video resolutions up to 1280 x 1024



● Allows up to 64 user accounts, with multi-level security



● Compatible with all operating systems



System Requirements





● Servers being connected to the KVM must have a HD15 port, and a USB port or PS/2 Keyboard/Mouse ports; a P778-Series combo KVM cable kit is required for each connected computer

● Computers that access the KVM remotely should have at least a Pentium III, 1GHz processor

● If remote computer is accessing the switch with Windows Client, DirectX 7.0 or higher is needed; if accessing the switch with Java Client, Sun’s Java 2 (1.4.2 or higher) runtime environment must be installed

● A network transfer speed of 128Kbps or higher is recommended

● Supports Internet Explorer, Firefox, Mozilla, Safari, Chrome, Opera and Netscape web browsers

● Compatible with all major operating systems

● Power consumption: 120V, 60Hz, 33.5W; 230V, 50Hz, 34W



Package Includes





● B020-U08-19-IP 8-Port console KVM switch with 19” LCD and built-in IP access

● (x2) P778-Series 6 ft. USB/PS2 combo KVM Cable Kits

● USB/PS2 combo external console Cable Kit

● Grounding wire

● RJ11 to DB9 firmware upgrade cable

● Rackmount hardware

● C13 to 5-15P power cord

● CD with owner’s manual, quick start guide, and device files
