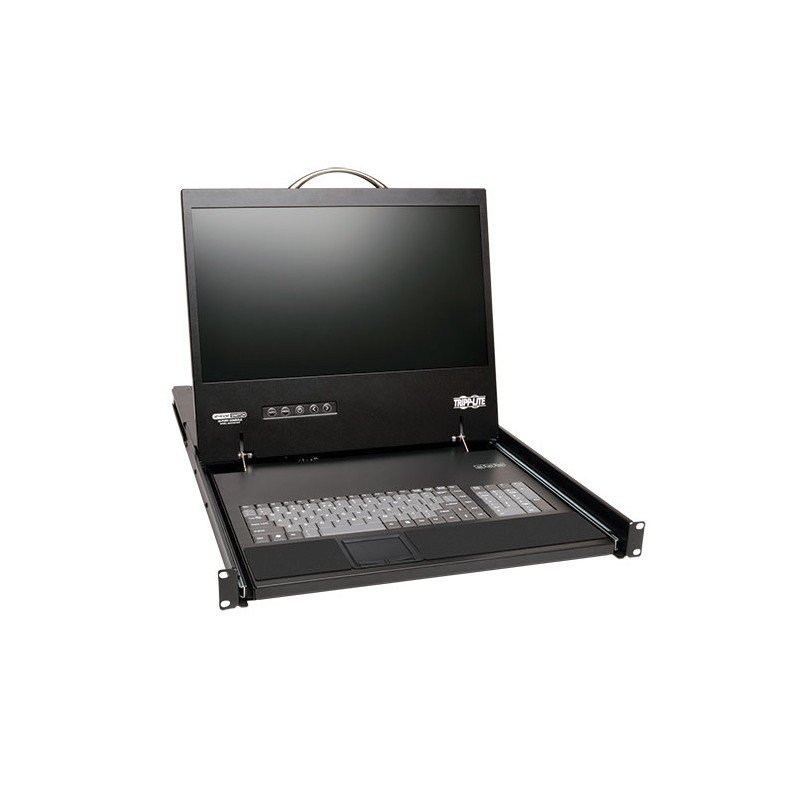

Tripp Lite’s B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.



The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 30.5 m away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19” LCD screen supports video resolutions up to 1366 x 768.



Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use.



Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com



Saves Space and Money



● Combines 16-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer

● Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000

● Inexpensive Cat5e/6/6a cabling lets you locate servers up to 30.5 m from the switch

● Use a Server Interface Unit, B078-101-USB-1 (for USB) with each server that will be connected with Cat5 cable

● To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.



IP Remote Access for Fewer Trips to the Server Room



● Remote access means there’s no need to travel to the server room or network closet

● Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection

● A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java

● 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session

● Supports both IPv4 and IPv6

● Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface



Simplifies IT Tasks



● On-screen display, hot keys and remote toolbar for easy use

● 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers

● Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port

● Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it

● Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

● System-sent messages to SNMP server notify you of LAN failures

● Supports RADIUS and LDAP/S authentication

● Log tracks events on your installation



Large 19” LCD



● Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely

● DDC emulation allows for optimal output to LCD



Advanced Security Features



● Multi-level password protection: create administrator accounts with full access and user accounts with limited access

● Supports TLS 1.2 security protocol

● You can install SSL certificates to ensure secure transactions between web servers and browsers



Long-Lasting Reliability



● Flash-upgradeable firmware over the network

● Heavy-duty steel housing stands up to use



● Control computers/servers locally or via LAN, WAN or Internet

● Occupies just 1U of space in a rack-mountable drawer

● Low-cost Cat5 cabling allows longer distances, reduces cable clutter

● 19” LCD screen supports video resolutions up to 1366 x 768

● Simultaneous support for 2 users – 1 local, 1 remote

● Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface

● Fast Virtual Media KVM System patented under Pat. No. US 9,417,720







System Requirements



● Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports

● User-supplied Cat 5e/6/6a cabling

● B078-101-USB-1 (USB) or B078-101-USB2 (USB) Server Interface Unit is required for each connected computer/server; the B078-101-USB2 is required for Fast Virtual Media speeds up to 12Mbps; the B078-101-USB-1 can be used for Virtual Media, but only at speeds up to 1Mbps

● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

● Compatible with Windows and Linux operating systems

● Remote access supported using Windows computers

● Remote console computers require minimum Pentium 4 with 2 GB memory

● Hardware versions: A new hardware version (v2) of the B070-016-19-IP was released in 2014, and it requires different firmware than was used in the previous version (v1). In the Support tab on this web page you will find a zip folder for the v1 KVM. In addition to including the applicable firmware, it contains a FW Notes file that will tell you how to determine which hardware version you have, and therefore, which firmware you need to use. If you have a v2 KVM, the latest firmware is that which came pre-installed on the KVM.

● Power consumption: 120V, 60Hz, 30W



Package Includes



● B070-016-19-IP 1U rackmount console KVM switch with 19” LCD

● C13 to 5-15P power cord

● Rackmount hardware

● CD with owner's manual

● Quick start guide
