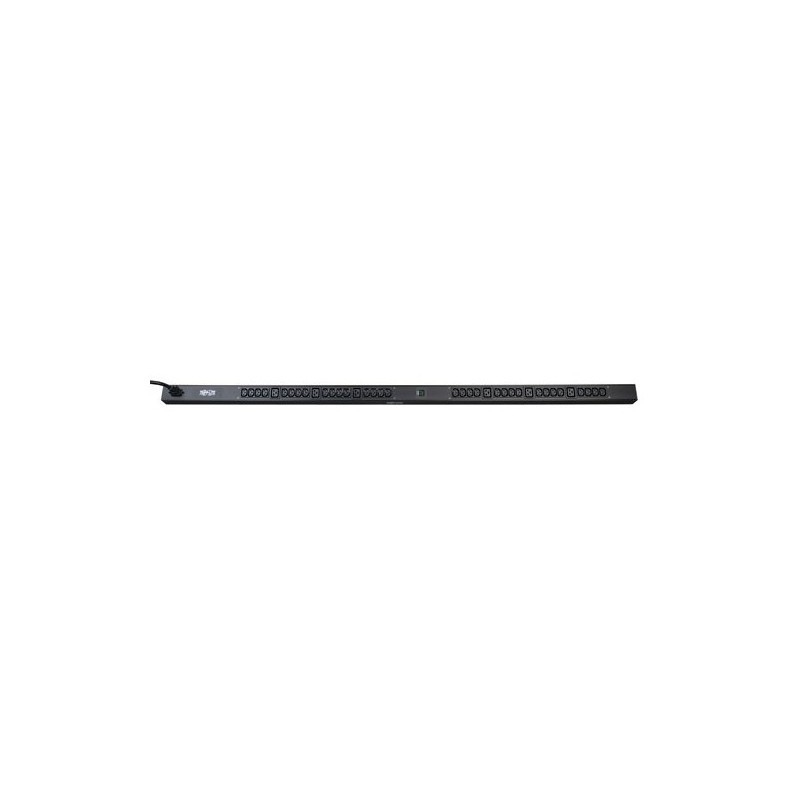

Tripp-Lite PDUMV20HV power distribution unit PDU
  • Tripp-Lite PDUMV20HV power distribution unit PDU
  • Tripp-Lite PDUMV20HV power distribution unit PDU

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.

PDUMV20HV 63.75 in. vertical 0U metered rack PDU supports 20A maximum capacity at 208/230/240V (agency derated to 16A). Includes 10 ft. detachable line cord with L6-20P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in a single unbreakered load bank. Built-in 2 character displays offer continuous information on PDU power consumption.

  • 16/20A single phase 200-240V Metered Power Distribution Unit / PDU (Agency derated to 16A continuous)
  • Two-digit lighted meter reports combined total output current in amps
  • 10ft / 3m detachable input cable with NEMA L6-20P plug
  • C20 inlet accepts a variety of 16A international cordsets
  • 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
  • 38 total outlets (6 C19, 32 C13)
  • Installable cord retention brackets keep vital networking equipment plugged in
  • Toolless installation supported in button-mount compatible equipment racks
  • Bolt-down installation brackets support installation in other racks and additional surfaces



Package Includes

  • PDUMV20HV 63.75 inch basic PDU with owner's manual
  • Set of 2 bolt-on plug retention brackets and installation hardware
  • Set of mounting brackets and installation hardware
Cable length3 m
Colour of productBlack
Dimensions (WxDxH)57 x 95 x 1620 mm
Input connection typeL6-20P
Mountingvertical
Nominal input voltage120 V
Output connections6 x C19 32 x C13
Package dimensions (WxDxH)89 x 121 x 1638 mm
Package weight2800 g
Rack mounting0U
Source data-sheetIcecat.biz
