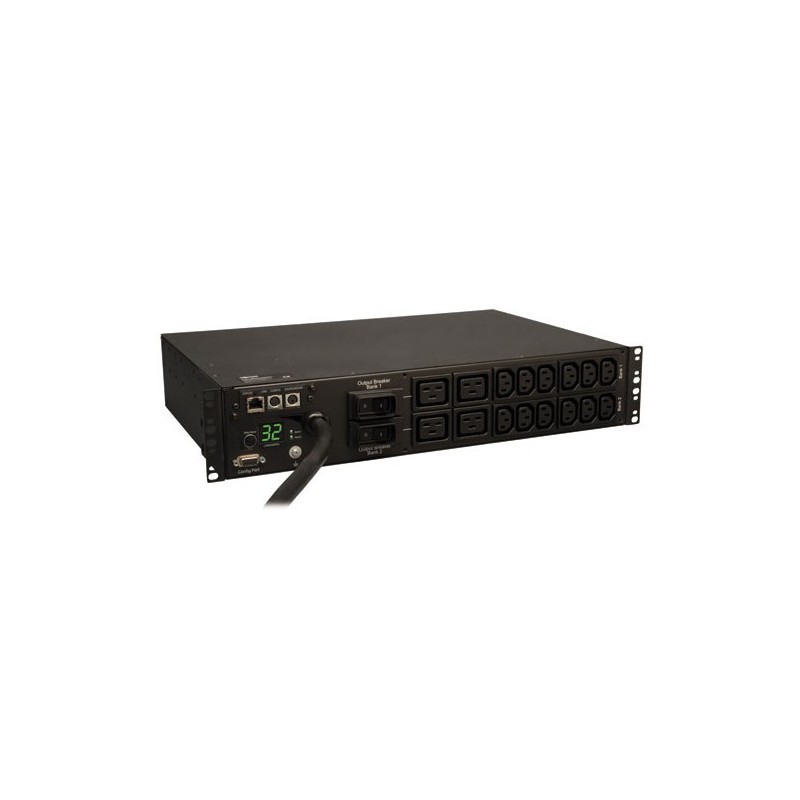

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

● 32A 7.4kW single phase 230V Monitored Power Distribution Unit / PDU

● Attached Blue IEC-309 32A (2P+E) input plug with 3.65m line cord

● 2U horizontal rackmount format

● 16 outlets (12 C13, 4 C19)

● Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)

● Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds

● Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors

● DHCP/Manual configuration support

● 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks

● Real-time clock backup maintains the time of day and date even if the PDU is unpowered

● Tiered access privileges allow an administrator and a guest to login via web browser for monitoring

● Alert notifications via email or SNMP traps offer immediate event notification

● Firmware upgrade ability supports future product enhancements.

● Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols

● Fully compatible with FREE PowerAlert Network Management System / NMS Software

● Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

● Mounting ears are reversible for front or rear facing rackmount installation

● Included cord retention brackets keep vital network equipment plugged in and continuously powered

● Monitored 32A 230V PDU, 2U horizontal rackmount

● Reports voltage, frequency & load level via ethernet interface

● Visual current meter, Reversible housing

● Blue 230V IEC-309 32A (2P+E) input plug

● 16 outlets (12 C13, 4 C19) with included cord retention brackets

● Temperature, humidity and contact-closure monitoring options



Package Includes



● Monitored PDU

● Rack installation brackets

● Cable retention brackets

● SNMPWEBCARD configuration cable

● PowerAlert software kit

● User manual
