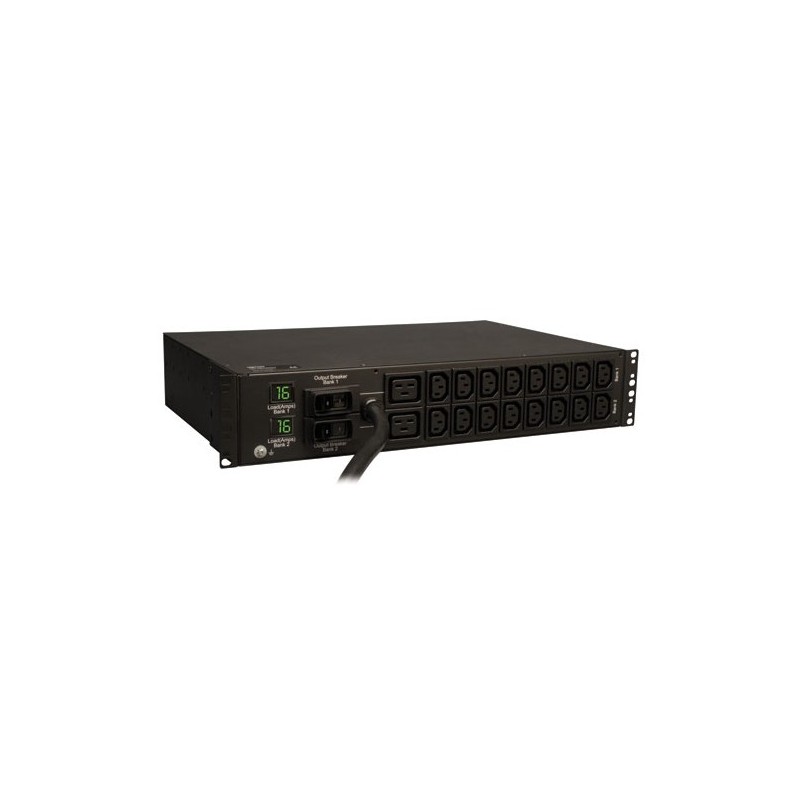

Tripp-Lite PDUMH32HV power distribution unit PDU
  • Tripp-Lite PDUMH32HV power distribution unit PDU
  • Tripp-Lite PDUMH32HV power distribution unit PDU
  • Tripp-Lite PDUMH32HV power distribution unit PDU
  • Tripp-Lite PDUMH32HV power distribution unit PDU
  • Tripp-Lite PDUMH32HV power distribution unit PDU
Tripp Lite Metered Power Distribution Units / PDU systems continuously report output load level in amps to help network managers prevent overloads and plan for future growth. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. Highly reliable design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

● 32A single phase 230V Metered Power Distribution Unit / PDU

● Set of two lighted current meters separately report power consumption in amps for each output load bank

● Attached IEC-309 32A (2P+E) input plug with 3.6m line cord

● 2U horizontal rackmount format installs in two rack spaces

● 18 total 230V outlets (2 C19, 16 C13)

● Outlets are arranged in two separately breakered and metered 16A load banks (each with 8 C13 and 1 C19 outlet)

● Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

● Mounting ears are reversible for front or rear facing rackmount installation

● Front-panel grounding lug

● Included cord retention brackets



● Metered single phase 32A 230V 2U horizontal rackmount PDU

● Set of 2 current meters reports current in amps for each output load bank

● Attached 3.6m cord with IEC-309 32A (2P+E) input plug

● 18 total 230V outlets (2 C19, 16 C13)

● Reversible housing, 31.75cm depth



Package Includes



● 2U metered PDU

● Mounting brackets

● Plug retention brackets

● User manual
AC outlet typesC13 coupler, C19 coupler
Cable length3.65 m
CertificationCE, UL, CSA
Colour of productBlack
Dimensions (WxDxH)445 x 317.5 x 89 mm
Input frequency60 Hz
MaterialSteel
Maximum current32 A
MountingHorizontal
Nominal input voltage230 V
Nominal output voltage230 V
PDU typesMetered
Rack mountingYes
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Weight6200 g
