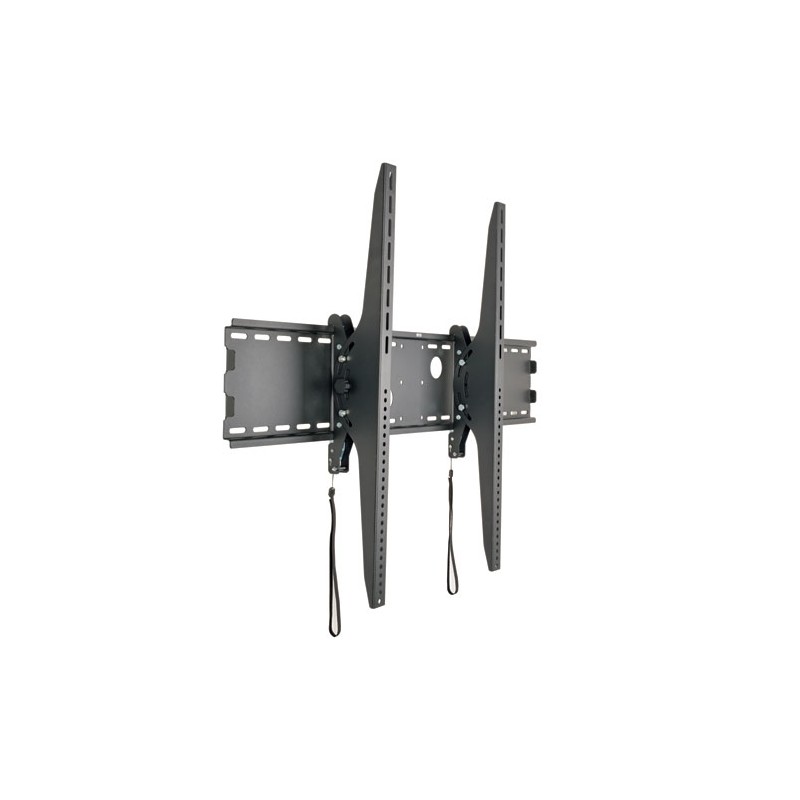

The VESA-compliant DWT60100XX Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 60 to 100 inches. A -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Display brackets with connected straps adjust to compensate for off-center wall studs. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 159 kgs (350 lbs.) Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 400 mm, 1000 x 600 mm and 1000 x 800 mm.



Mounts Your TV or Monitor to the Wall

● Fits most flat-panel televisions, monitors and other displays from 60 to 100 in.

● Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants

● Mounts out of sight behind display for sleek, professional appearance

● Mounting hardware included



Convenient One-Touch Adjustment

● -15° to +15° tilt capability provides comfortable viewing from multiple angles

● Improves viewing angles in applications where audience is below the display



Durable Metal Construction

● Supports up to 158 kg (350 lb.)

● Adjustable display brackets with connected straps compensate for off-center wall studs

● Scratch-resistant powder-coated finish



VESA Compliance

● Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 800 x 400 mm, 800 x 600 mm, 800 x 800 mm, 1000 x 400 mm, 1000 x 600 mm and 1000 x 800 mm



● Fits most flat-panel displays from 60 to 100 in.

● Hangs out of sight for a sleek, professional appearance

● -15° to +15° tilt capability for wide range of motion

● 5-year warranty

● Supports up to 159 kg (350 lb.)



Package Includes



● Wall plate

● Mounting template

● (2) Adapter brackets

● (2) Tilt adjusting knobs

● (4) M5 x 14 screws

● (4) M6 x 14 screws

● (4) M6 x 30 screws

● (4) M8 x 20 screws

● (4) M8 x 30 screws

● (4) Washers

● (8) Small spacers

● (4) Big spacers

● (6) Anchor bolts

● (6) Concrete anchors

● (6) D6 washers

● Owner’s manual
