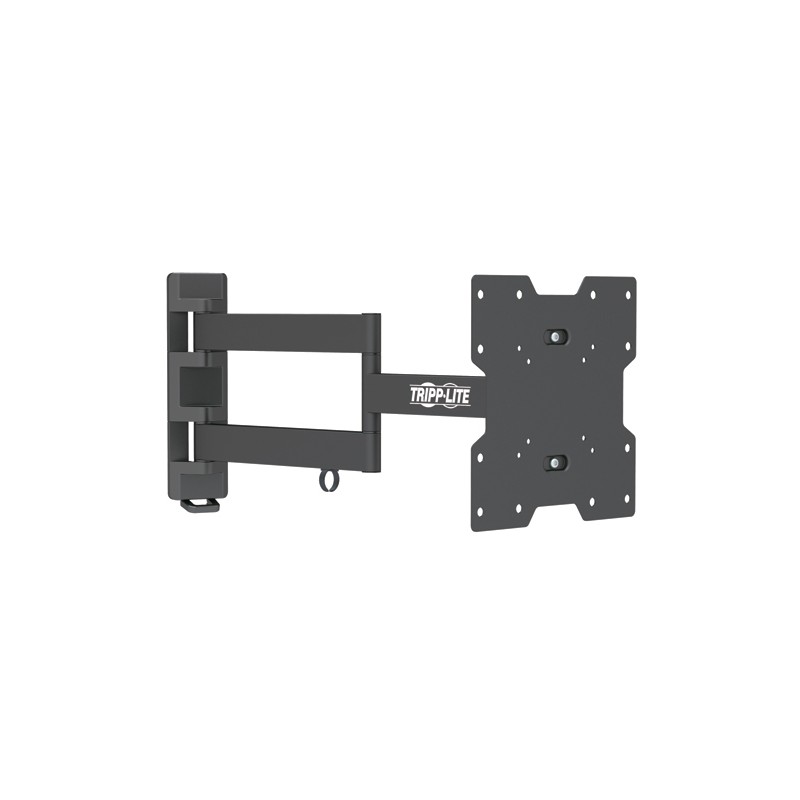

The VESA-compliant DWM1742MA Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches. The full-motion swivel arm can be adjusted for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 180° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 35 kgs (77 lbs.) Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm.



Mounts Your TV or Monitor to the Wall

● Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.

● Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants

● Full-motion swivel arm adjusts for angle

● Mounting hardware included



Convenient One-Touch Adjustment

● 180° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability provides comfortable viewing from multiple angles



Durable Metal Construction

● Supports up to 34 kg (77 lb.)

● Scratch-resistant powder-coated finish blends with any décor

● Display cables attach to mount to reduce clutter



VESA Compliance

● Supports the following VESA mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm



● Fits most flat-panel displays from 17 to 42 in.

● One-touch adjustment for comfortable viewing

● 180° swivel, -15° to +15° tilt and -3° to +3° screen adjustment

● 5-year warranty

● Supports up to 35 kg (77 lb.)



Package Includes



● Arm assembly

● (2) Top/bottom covers

● Middle cover

● Mounting template

● Cable cover

● Cable clip

● M4 x 5 screw

● (4) M4 x 14 screws

● (4) M5 x 14 screws

● (4) M6 x 14 screws

● (4) M8 x 20 screws

● (4) D5 washers

● (4) D8 washers

● (8) Small spacers

● (4) Anchor bolts

● (4) Concrete anchors

● (4) D6 washers

● Hex key

● Owner’s manual
