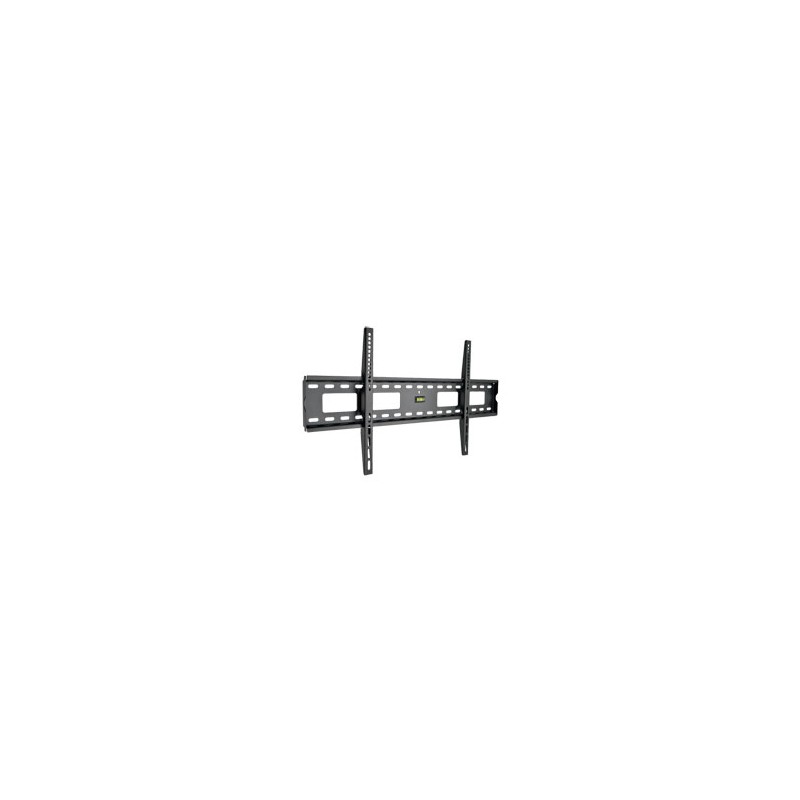

The VESA-compliant DWF4585X Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 91 kgs (200 lbs.) Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.



Mounts Your TV or Monitor to the Wall

● Fits most flat-panel televisions, monitors and other displays from 45 to 85 in.

● Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants

● Mounts out of sight behind display for sleek, professional appearance

● Mounting hardware included



Durable Metal Construction

● Supports up to 90 kg (200 lb.)

● Open frame allows easy wall access

● Adjustable mounting rails compensate for off-center wall studs

● Built-in bubble level for accurate display leveling

● Scratch-resistant powder-coated finish



VESA Compliance

● Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm



● Fits most flat-panel displays from 45 to 85 in.

● Hangs out of sight for a sleek, professional appearance

● Adjustable mounting rails compensate for off-center wall studs

● 5-year warranty

● Supports up to 91 kg (200 lb.)



Package Includes



● Wall plate

● (2) Adapter brackets

● (4) M5 x 14 screws

● (4) M6 x 14 screws

● (4) M6 x 30 screws

● (4) M8 x 20 screws

● (4) M8 x 30 screws

● (4) Washers

● (8) Small spacers

● (4) Big spacers

● (6) Anchor bolts

● (6) Concrete anchors

● (6) D6 washers

● Owner’s manual
