AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Access Control List (ACL) | Y |
Backup features | iSCSI LUN |
Backup function | Y |
Built-in optical drive | N |
Cable lock slot | Y |
Cable lock slot type | Kensington |
Cables included | AC,LAN (RJ-45) |
Certification | FCC Class B CE Class B BSMI Class B |
Chassis type | Desktop |
Colour of product | Black |
Cooling type | active |
CPU configuration (max) | 1 |
Depth | 223 mm |
Device class | Small & Medium Business |
Drive bay locking | Y |
Embedded options available | N |
Enhanced Intel SpeedStep Technology | Y |
eSATA ports quantity | 1 |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Y |
External power adapter | Y |
Fan diameter | 92 mm |
Height | 166 mm |
Hot-swap drive bays | Y |
Idle States | Y |
Installed storage drive type | N |
Intel 64 | Y |
Intel Enhanced Halt State | Y |
Intel Rapid Storage Technology | N |
Intel Smart Connect Technology | N |
Intel Stable Image Platform Program (SIPP) | N |
Intel Trusted Execution Technology | N |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
iSCSI support | Y |
LED indicators | HDD,Power,Status |
Mac compatibility | Y |
Mac operating systems supported | Mac OS X 10.11 El Capitan |
Maximum number of PCI Express lanes | 6 |
Maximum RAM supported | 8 GB |
Maximum supported storage capacity | 40 TB |
Memory slots | 2 |
Noise level | 19.8 dB |
Number of execution units | 12 |
Number of fans | 2 fan(s) |
Number of storage drives supported | 4 |
Number of users | 2048 user(s) |
On-board graphics adapter model | Intel HD Graphics 500 |
On/off switch | Y |
Operating altitude | 0 - 5000 m |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | 5 - 40 °C |
PCI Express configurations | 1x2+2x1,4x1 |
PCI Express slots version | 2.0 |
Power consumption (typical) | 28.8 W |
Power supply location | External |
Power supply unit (PSU) capacity | 100 W |
Processor boost frequency | 2.30 GHz |
Processor cache | 2 MB |
Processor code | SR2Z9 |
Processor codename | Apollo Lake |
Processor cores | 4 |
Processor family | Intel Celeron |
Processor frequency | 1.50 GHz |
Processor lithography | 14 nm |
Processor model | J3455 |
Processor operating modes | 64-bit |
Processor socket | BGA 1296 |
Processor threads | 4 |
Quick installation guide | Y |
RAID levels | 0,1,5,6,10,JBOD |
RAID support | Y |
Stepping | B1 |
Storage drive interface | M.2,Serial ATA |
Storage drive size | 2.5/3.5 " |
Storage drives installed | N |
Storage temperature (T-T) | -20 - 60 °C |
Supported file systems | BTRFS,FAT,HFS+,NTFS,ext3,ext4 |
Supported storage drive types | HDD,SSD |
Thermal Design Power (TDP) | 10 W |
Thermal Monitoring Technologies | Y |
Tjunction | 105 °C |
Type | NAS |
UART | Y |
USB port | Y |
Wake-on-LAN ready | Y |
Weight | 2280 g |
Wi-Fi | No |
Width | 199 mm |
Windows operating systems supported | Windows 10,Windows 7 |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 8 GB |
Memory types supported by processor | DDR3L,LPDDR3-SDRAM,LPDDR4-SDRAM |
Memory channels supported by processor | Dual |
ECC supported by processor | N |
Intel Virtualization Technology (VT-x) | Y |
Intel Clear Video Technology | Y |
Processor package size | 24 x 31 mm |
On-board graphics adapter base frequency | 250 MHz |
Maximum on-board graphics adapter memory | 8 GB |
On-board graphics adapter burst frequency | 750 Mhz |
Power consumption (sleep) | 12.6 W |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Conflict Free processor | Y |
Intel Secure Boot | Y |
Number of displays supported (on-board graphics) | 3 |
Intel® Wireless Display (Intel® WiDi) | N |
Intel® Insider™ | N |
Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | N |
Intel® Identity Protection Technology (Intel® IPT) | Y |
Intel® Anti-Theft Technology (Intel® AT) | N |
Intel® Secure Key | Y |
Intel® Small Business Advantage (Intel® SBA) | N |
Intel® OS Guard | N |
Intel® Turbo Boost Technology | N |
Intel® Quick Sync Video Technology | Y |
Intel® High Definition Audio (Intel® HD Audio) | Y |
Intel® Smart Response Technology | N |
Processor ARK ID | 95594 |
Intel® InTru™ 3D Technology | N |
Hot spare | Y |
RAM capacity | 4 GB |
RAM type | DDR3L |
Fan diameter 2 | 92 mm |

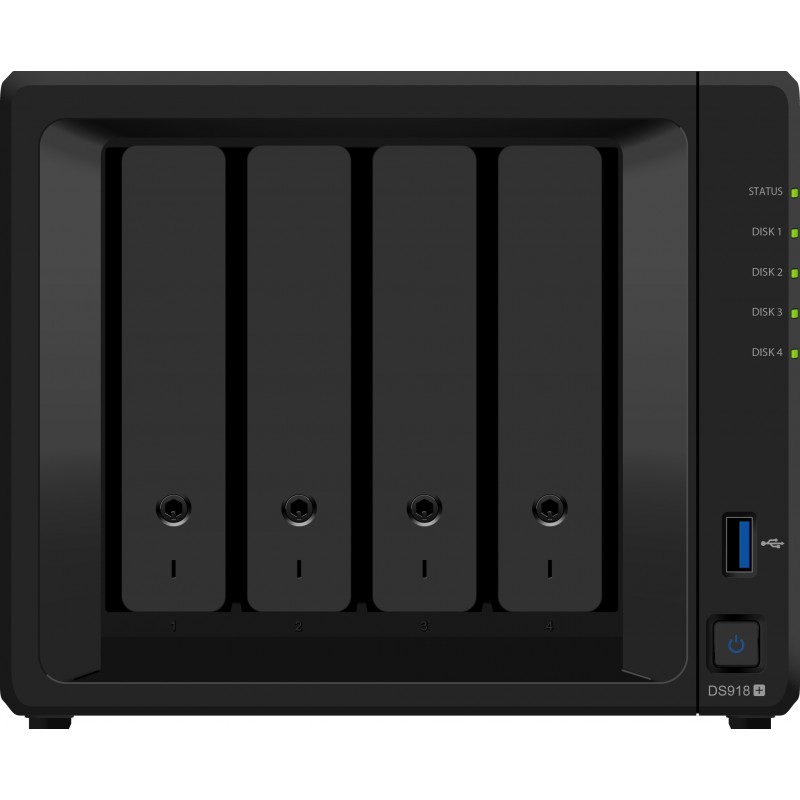

DS918+, Intel Celeron J3455, 64-bit, Quad Core 1.5GHz, 4 GB DDR3L, 4Bay, RJ-45 1GbE, AES-NI, 166 x 199 x 223 mm
DS918+
Out of Stock
