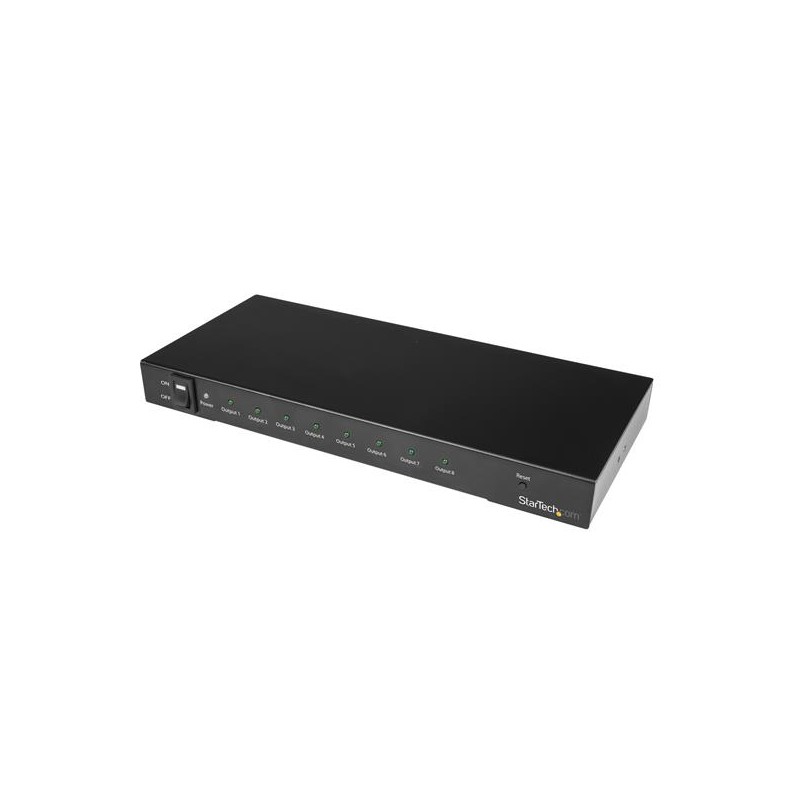

StarTech.com 8-Port 4K 60Hz HDMI Splitter
  • StarTech.com 8-Port 4K 60Hz HDMI Splitter
  • StarTech.com 8-Port 4K 60Hz HDMI Splitter
  • StarTech.com 8-Port 4K 60Hz HDMI Splitter
  • StarTech.com 8-Port 4K 60Hz HDMI Splitter
  • StarTech.com 8-Port 4K 60Hz HDMI Splitter
Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter

This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports true 4K at 60Hz

This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.

Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.

Widely compatible

The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.

Easy installation and setup

The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.

The ST128HD20 is backed by a 2-year StarTech.com warranty.

The StarTech.com Advantage

- Offers HDMI 2.0 technology which can support 4K 60Hz HDR
- 7.1 surround sound audio
- Supports 4:4:4 chroma subsampling even at 4K 60Hz with bandwidth up to 18Gbps
Audio supportY
CertificationCE, FCC
Dimensions (WxDxH)258 x 113.5 x 26 mm
HDCPY
HDMI version2.0
Input current0.6 A
Input voltage100 - 240 V
LED indicatorsY
Maximum resolution3840 x 2160 pixels
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 45 °C
Output current3 A
Output voltage5 V
Package depth325 mm
Package height70 mm
Package weight1300 g
Package width260 mm
Power consumption (typical)15 W
Power LEDY
Storage temperature (T-T)-10 - 70 °C
Supported graphics resolutions1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA)
Supported video modes720p,1080p
Video port typeHDMI
Video ports quantity8
Weight1300 g
Supported audio channels7.1
Maximum refresh rate60 Hz
Included power plug typesAU,EU,NA,UK
Product colourBlack

ST128HD20.pdf

StarTech.com 8-Port 4K 60Hz HDMI Splitter Data Sheet

Download (176.58k)
