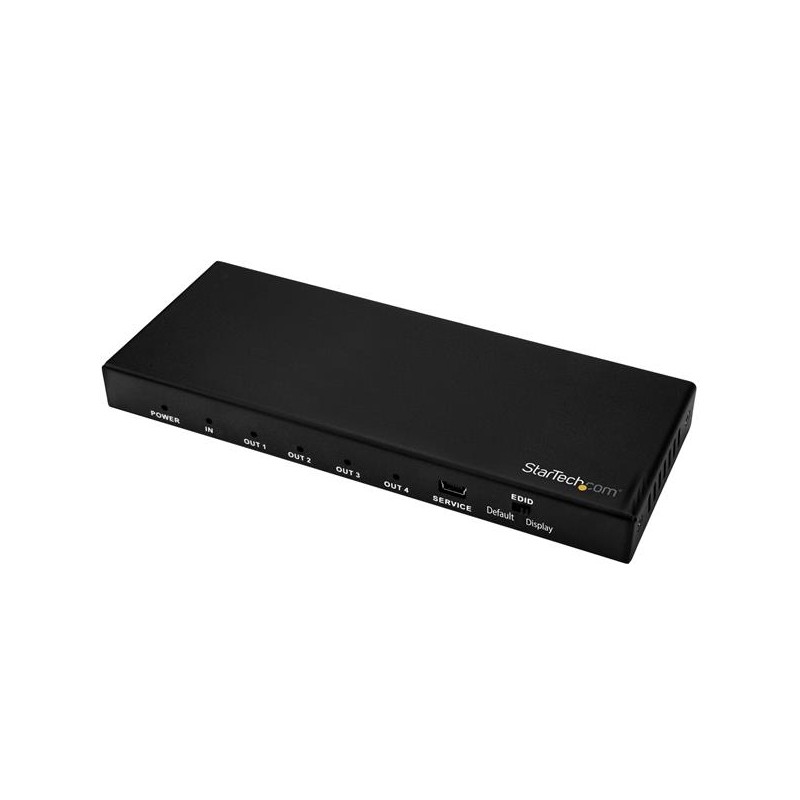

StarTech.com 4-Port HDMI Splitter - 60Hz
  • StarTech.com 4-Port HDMI Splitter - 60Hz
  • StarTech.com 4-Port HDMI Splitter - 60Hz
  • StarTech.com 4-Port HDMI Splitter - 60Hz
  • StarTech.com 4-Port HDMI Splitter - 60Hz
  • StarTech.com 4-Port HDMI Splitter - 60Hz
1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

This 4-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Astonishing picture quality with support for 4K 60Hz and HDR
- Wide device compatibility with support for HDCP 2.2, backward compatible with virtually any HDMI device
- Hassle-free setup with support for EDID emulation and plug-and-play installation
CertificationCE, FCC,
Dimensions (WxDxH)64 x 165 x 17 mm
Full HDY
HDCPY
HDMI version2.0
Input current1 A
Input voltage100 - 240 V
LED indicatorsY
Maximum resolution3840 x 2160 pixels
Operating relative humidity (H-H)20 - 90 %
Operating temperature (T-T)0 - 40 °C
Output current0.2 A
Output voltage5 V
Package depth212 mm
Package height55 mm
Package weight100 g
Package width148 mm
Plug and PlayY
Power consumption (typical)5 W
Power LEDY
RoHS complianceY
Storage temperature (T-T)-20 - 60 °C
Supported graphics resolutions1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160
Supported video modes720p,1080p
User guideY
Video port typeHDMI
Video ports quantity4
Weight271 g
Supported audio channels7.1
Included power plug typesAU,EU,NA,UK
Product colourBlack

ST124HD202.pdf

StarTech.com 4-Port HDMI Splitter - 60Hz Data Sheet

Download (133.84k)

StarTech.com 4-Port HDMI Splitter - 60Hz

StarTech.com HDMI Splitter - 4-Port - 4K 60Hz - HDMI Splitter 2.54 cm (1") 4 Out - 4 Way HDMI Splitter - HDMI Port Splitter

ST124HD202

In Stock
