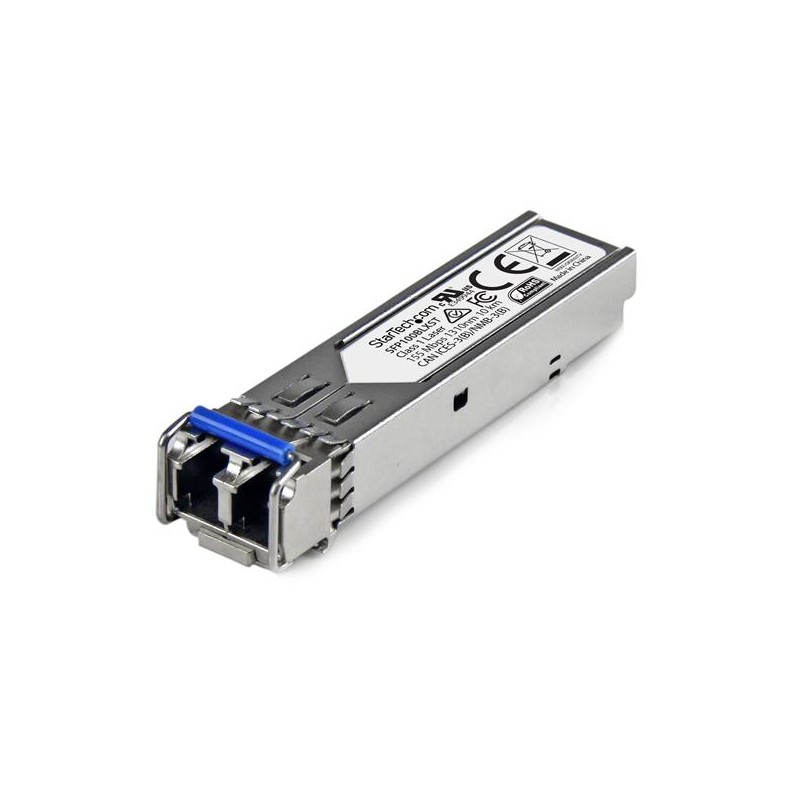

StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
  • StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
  • StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
  • StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
  • StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
  • StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
  • StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km
This 100Base-LX SFP module delivers what you need most in your network connections: reliable performance. It’s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The single-mode SFP transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it’s backed by a lifetime warranty.



Delivers 100Mbps Fast Ethernet connections

With data transfer rates of up to 100Mbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP module can be installed into fiber networking equipment with an MSA compliant port. It delivers dependable Fast Ethernet connectivity over single-mode fiber for 100Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi.) and 1310 nm optical wavelength.



Built for reliable network performance

This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.



Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that’s compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.



You can count on SFP100BLXST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Cable typefiber optic
CertificationCE, FCC, UR
Colour of productSilver
Data transfer rate (max)155 Mbit/s
Depth58.4 mm
Duplex systemFull,Half
Fiber optic connectorLC
Full duplexY
Height12.6 mm
Hot-Plug supportY
Housing materialAluminium
Interface typeSFP
Maximum transfer distance10000 m
Networking standardsIEEE 802.3u
Number of products included1 pc(s)
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 70 °C
Package depth120 mm
Package height30 mm
Package weight95 g
Package width90 mm
RoHS complianceY
SFP transceiver typeLX
Storage temperature (T-T)-40 - 85 °C
Wavelength1310 nm
Weight30 g
Width13.9 mm
Wavelength-division multiplexing (WDM)N
Digital Diagnostics Monitoring (DDM)Y
Single-mode fiber (SMF) supportedY

SFP100BLXST.pdf

StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km Data Sheet

Download (142.67k)

StarTech.com MSA Compliant 100 Mbps Fiber SFP Transceiver Module - 100Base-LX - SM LC - 10 km

StarTech.com StarTech.com 100Base-LX - 100 Mbps Transeiver Module - LC Fiber - MSA Compliant - 10 km - 100Base SFP module - Singlemode SFP

SFP100BLXST

In Stock

£59.64
£49.70 Ex VAT.
