Cable type | fiber optic |
Certification | CE, FCC, UR |
Colour of product | Silver |
Data transfer rate (max) | 10000 Mbit/s |
Depth | 58.4 mm |
Duplex system | Full |
Fiber optic connector | LC |
Full duplex | Y |
Height | 12.6 mm |
Hot-Plug support | Y |
Housing material | Aluminium |
Interface type | SFP+ |
Maximum transfer distance | 10000 m |
Networking standards | IEEE 802.3ae |
Number of products included | 1 pc(s) |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | 0 - 70 °C |
RoHS compliance | Y |
SFP transceiver type | BX |
Storage temperature (T-T) | -40 - 85 °C |
Weight | 30 g |
Width | 13.9 mm |
Wavelength-division multiplexing (WDM) | Y |
Digital Diagnostics Monitoring (DDM) | Y |
Tx wavelength (min) | 1330 nm |
Rx wavelength (min) | 1270 nm |
Single-mode fiber (SMF) supported | Y |

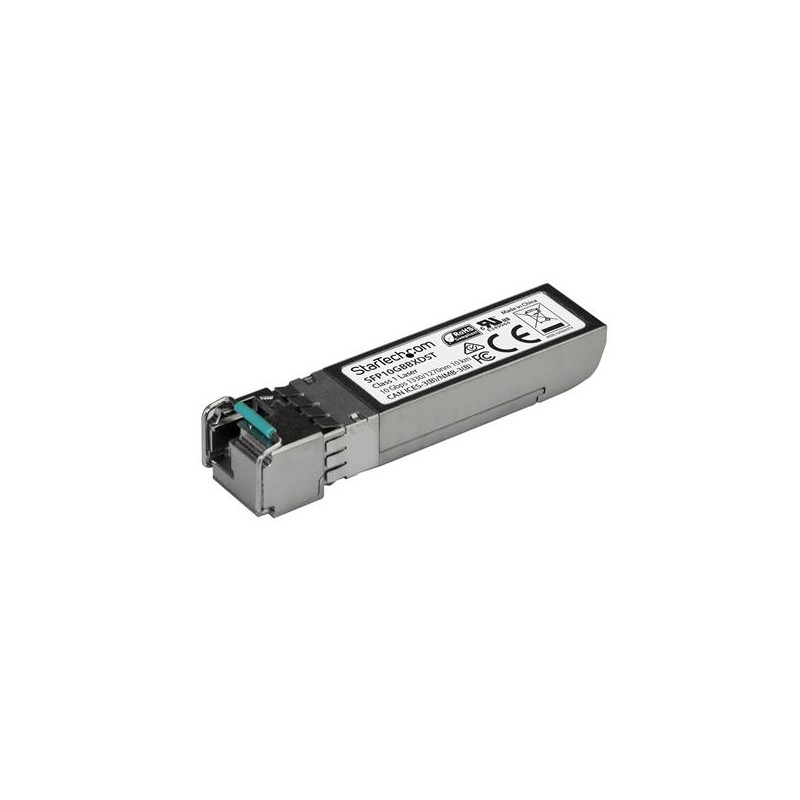

StarTech.com MSA Compliant 10 Gigabit Fiber SFP+ Transceiver Module - 10GBase-BX (Downstream) - SM LC - 10 km Data Sheet
Download (134.66k)StarTech.com StarTech.com 10GBase-BX - Downstream - Transeiver - LC Fiber - MSA Compliant - 10 km - 10G SFP+ Module - Singlemode SFP
SFP10GBBXDST
Out of Stock
