Cable type | fiber optic |
Certification | CE, FCC, UR |
Colour of product | Silver |
Data transfer rate (max) | 40000 Mbit/s |
Depth | 72 mm |
Duplex system | Full |
Fiber optic connector | LC |
Full duplex | Y |
Height | 8.5 mm |
Hot-Plug support | Y |
Housing material | Aluminium |
Interface type | QSFP+ |
Maximum transfer distance | 10000 m |
Networking standards | IEEE 802.3ba |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | 0 - 70 °C |
Package depth | 120 mm |
Package height | 30 mm |
Package weight | 95 g |
Package width | 90 mm |
RoHS compliance | Y |
SFP transceiver type | LR4 |
Storage temperature (T-T) | -40 - 85 °C |
Weight | 40 g |
Width | 18.4 mm |
Digital Diagnostics Monitoring (DDM) | Y |
Tx wavelength (min) | 1270 nm |
Tx wavelength (max) | 1330 nm |
Single-mode fiber (SMF) supported | Y |

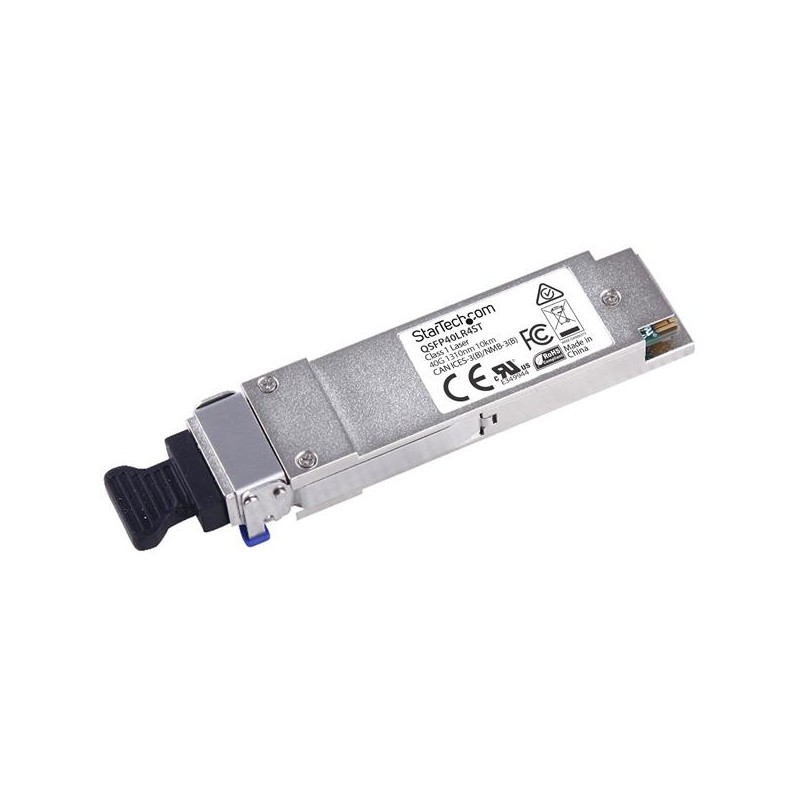

StarTech.com MSA Compliant 40 Gigabit Fiber QSFP+ Transceiver Module - 40GBase-LR4 - SM LC - 10 km Data Sheet
Download (142.84k)StarTech.com StarTech.com 40GBase-LR4 - 40G QSFP Transeiver Module - LC Fiber - MSA Compliant - 10 km - QSFP 40G LR - Singlemode SFP
QSFP40LR4ST
Out of Stock
