D-Link DIS-100G-6S
  • D-Link DIS-100G-6S
  • D-Link DIS-100G-6S
Unmanaged Plug and Play Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.Gigabit Connectivity with SFP slot Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.Officially Certified Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.Withstands Extreme Temperatures Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.Strong Build The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.Fast Deployment For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.Fanless Design With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.Discrete Size Small but mighty. To make the most of cabinet space, it measures: 112.2 x 29.1 x 89.4 mm.
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Certification47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC
Copper ethernet cabling technology1000Base-T
DC input voltage12 - 48 V
Depth28 mm
Forwarding rate8.928 Mpps
Height102 mm
Input current1 A
International Protection (IP) codeIP40
Jumbo frames supportY
LED indicatorsLink,Power
MAC address table4000 entries
Mean time between failures (MTBF)569768 h
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-20 - 65 °C
Power consumption (max)4.82 W
Quality of Service (QoS) supportY
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-20 - 85 °C
Store-and-forwardY
Switch typeManaged
Switching capacity12 Gbit/s
Transmission methodStore-And-Forward
Weight446 g
Width162 mm
Jumbo frames9.6
SFP module slots quantity2
Product colourBlack
FanlessY

dis-100g-6s.pdf

D-Link DIS-100G-6S Data Sheet

Download (806.42k)

Similar products

  • D-Link DES-105
    D-Link DES-105
  • D-Link DGS-3630-28SC
    D-Link DGS-3630-28SC
  • D-Link DGS-1510-28XMP
    D-Link DGS-1510-28XMP
  • D-Link DGS-3630-28TC
    D-Link DGS-3630-28TC
  • D-Link DGS-1008MP
    D-Link DGS-1008MP

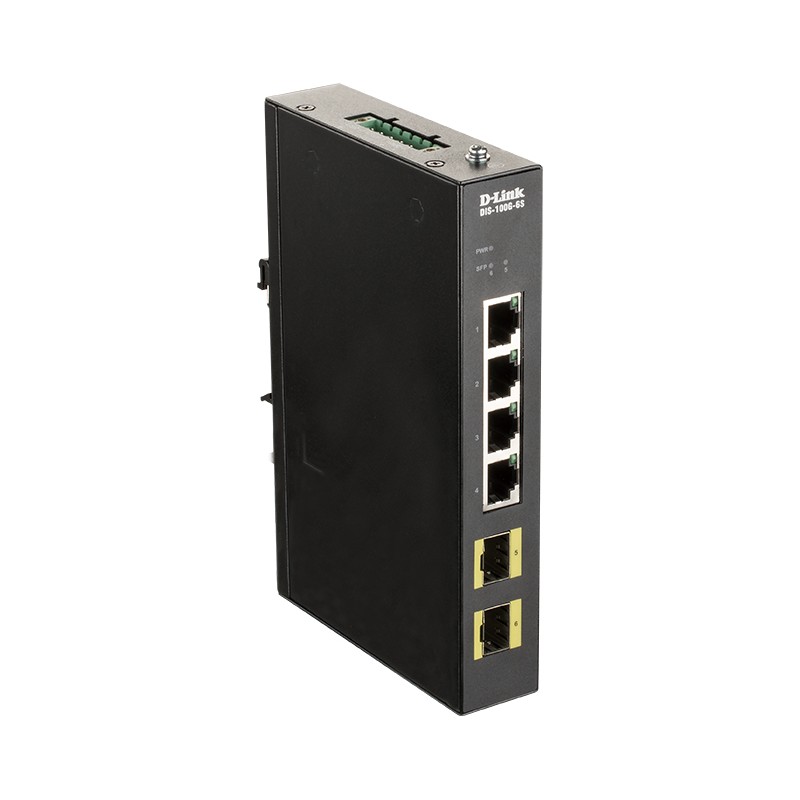

D-Link DIS-100G-6S

Industrial Gigabit Unmanaged Switch with 2 SFP slots, Auto-MDI/MDIX

DIS-100G-6S

Out of Stock

£190.89
£159.08 Ex VAT.
