Access Control List (ACL) | Y |
Auto MDI/MDI-X | Y |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Console port | RJ-45 |
DC input voltage | 54 V |
Depth | 126 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flash memory | 32 MB |
Form factor | 1U |
Forwarding rate | 14.88 Mpps |
Full duplex | Y |
Heat dissipation | 279.59 BTU/h |
Height | 44 mm |
IGMP snooping | Y |
Internal memory | 256 MB |
LED indicators | Activity,Link,Power,Speed |
MAC address table | 8000 entries |
Mean time between failures (MTBF) | 277967 h |
Memory type | DDR3-SDRAM |
MIB support | Y |
Multicast support | Y |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | -5 - 50 °C |
Packet buffer memory | 4.1 MB |
Power consumption (max) | 81.9 W |
Power consumption (typical) | 2.5 W |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 8 |
Power supply included | Y |
Quality of Service (QoS) support | Y |
Rack mounting | Yes |
SSH/SSL support | Y |
Static port security | Y |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Store-and-forward | Y |
Switch layer | L2/L3 |
Switch type | Managed |
Switching capacity | 20 Gbit/s |
Total Power over Ethernet (PoE) budget | 65 W |
VLAN support | Y |
Web-based management | Y |
Weight | 950 g |
Width | 280 mm |
IP-MAC-Port binding | Y |
Installed SFP modules quantity | 2 |
Multicast listener discovery (MLD) snooping | Y |
Product colour | Black |
Virtual LAN features | Tagged VLAN |
DHCP features | DHCP relay,DHCP snooping |
Half duplex | Y |

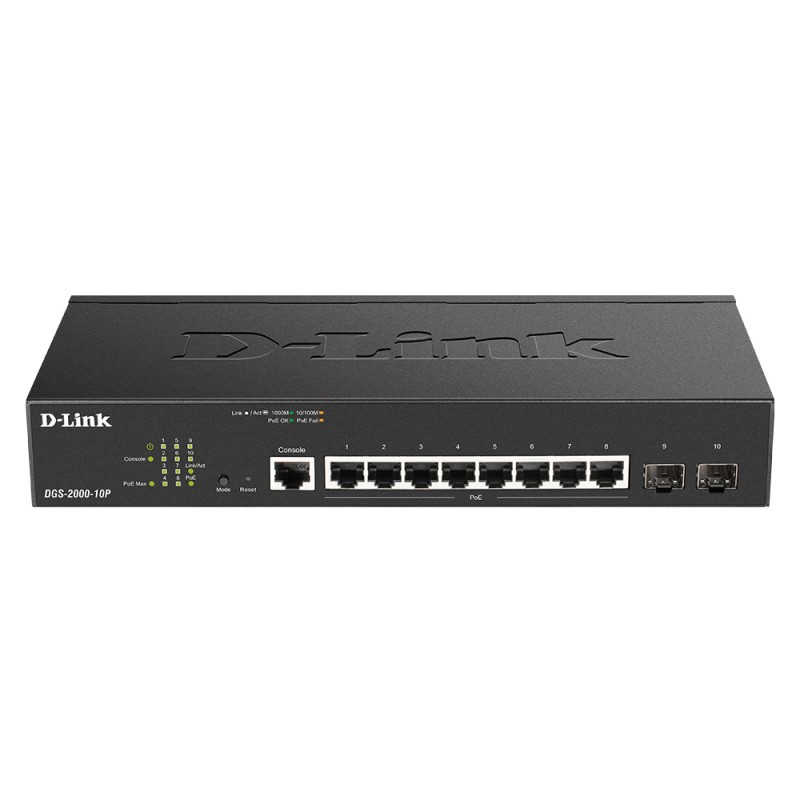

8-Port 10/100/1000BASE-T PoE + 2-Port 100/1000 Mbps SFP Ports Managed Access Switch
DGS-2000-10P
Out of Stock
