D-Link DGS-1100-26MPV2
  • D-Link DGS-1100-26MPV2
  • D-Link DGS-1100-26MPV2
  • D-Link DGS-1100-26MPV2
Smart Web UI The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.Easy to Deploy and Manage D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.PoE and Poe+, with budgets up to 370W The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.Easy Troubleshooting The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.Green Technology D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).Surveillance Mode Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
Combo SFP ports quantity2
Copper ethernet cabling technology10GBASE-T,1000BASE-T
Depth208 mm
Flash memory16 MB
Flow control supportY
Forwarding rate38.69 Mpps
Full duplexY
Head-of-line (HOL) blockingY
Heat dissipation287 BTU/h
Height44 mm
Housing materialMetal
IGMP snoopingY
Jumbo frames supportY
Link aggregationY
MAC address filteringY
MAC address table8 entries
MIB support• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at
Noise level50.5 dB
Number of multicast groups filtered1
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-10 - 50 °C
Port mirroringY
Power consumption (max)454.1 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet plus (PoE+) ports quantity24
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Security algorithmsSSL/TLS
Spanning tree protocolY
Static port securityY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity52 Gbit/s
VLAN supportY
Web-based managementY
Weight2800 g
Width440 mm
ARP inspectionY
Power over Ethernet (PoE) power per port370 W
Product colourBlack
IPv4 multicast entries1
IPv6 multicast entries1
Virtual LAN featuresPort-based VLAN,Voice VLAN
IPv4 & IPv6 featuresIPv4 FIB
DHCP featuresDHCP client
FanlessY
Half duplexY
MTBF (PoE)317.777 h

dgs-1100-26mpv2.pdf

D-Link DGS-1100-26MPV2 Data Sheet

Download (612.48k)

Similar products

  • D-Link DES-105
    D-Link DES-105
  • D-Link DGS-3630-28SC
    D-Link DGS-3630-28SC
  • D-Link DGS-1510-28XMP
    D-Link DGS-1510-28XMP
  • D-Link DGS-3630-28TC
    D-Link DGS-3630-28TC
  • D-Link DGS-1008MP
    D-Link DGS-1008MP

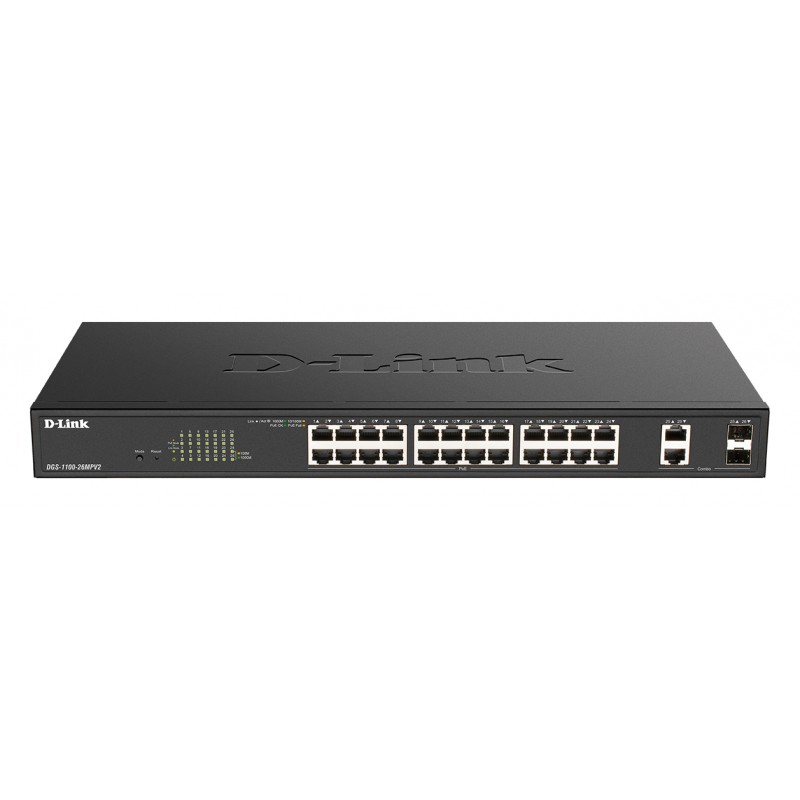

D-Link DGS-1100-26MPV2

26-Port Smart Managed Switch with 24 PoE+ and 2 Combo RJ45/SFP ports. PoE budget 370W

DGS-1100-26MPV2

In Stock

£295.31
£246.09 Ex VAT.
