Lenovo 7ZT7A00534
  • Lenovo 7ZT7A00534
  • Lenovo 7ZT7A00534

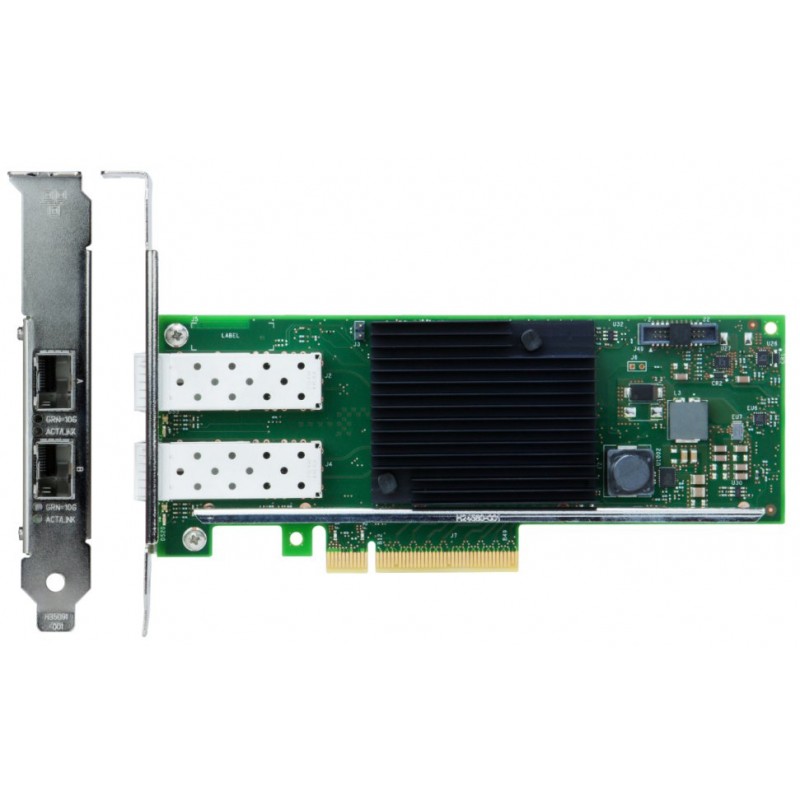

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.



The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems.



- VXLAN/NVGRE Hardware Offloads: These stateless offloads preserve application performance for overlay networks. With these offloads, it is possible to distribute network traffic across CPU cores. At the same time, X710 offloads LSO, GSO, and checksum from the host software, which reduces CPU overhead

- Mobile and cloud application acceleration: Intel’s Data Plan Development Kit (DPDK) delivers an open driver where users can fine-tune small packet performance, which delivers line-rate at 128 byte, and near line-rate at 64 byte

- Low latency: Intel Ethernet Flow Director delivers hardware-based application steering and Intel Data Direct I/O makes the processor cache the primary destination and source of I/O data rather than main memory. Combined, latency is reduced and Intel reports a three-fold improvement in RPS

- Virtualization performance: With Intel Virtualization Technology (VT), the X710 family of adapters delivers outstanding I/O performance in virtualized server environments. These adapters reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), which enables near-line rate speeds for small packets and supports almost an unlimited amount of isolated traffic flows so that you can scale your cloud environment

- Next-generation VMDq: The X710 adapters support up to 256 VMDq VMs and offer enhanced Quality of Service (QoS) feature by providing weighted round-robin servicing for the Tx data. The adapters offload the data-sorting functionality from the hypervisor to the network silicon, which improves data throughput and CPU usage

- PCI-SIG SR-IOV implementation: Provides an implementation of the PCI-SIG standard for I/O Virtualization. The physical configuration of each port is divided into multiple virtual ports. Each virtual port is assigned to an individual VM directly by bypassing the virtual switch in the Hypervisor, which results in near-native performance

- VM load balancing: Provides traffic load balancing (Tx and Rx) across VMs that are bound to the team interface. It also provides fault tolerance if a switch, port, cable, or adapter fails
CertificationEN55022\nEN55024\nEN 61000-3-2\nEN 61000-3-3\nICES-003, Issue-004\nFCC 47 CFR Part 15 Class A\nVCCI\nAS/NZS CISPR 22 / C-tick\nRRL for KC\nBSMI\nUL 94 V-1
Compatible operating systemsMicrosoft Windows Server 2008 R2\nMicrosoft Windows Server 2012\nMicrosoft Windows Server 2012 R2\nMicrosoft Windows Server 2016\nRed Hat Enterprise Linux 6 Server x64 Edition\nRed Hat Enterprise Linux 7\nSUSE Linux Enterprise Server 11 for AMD64/EM64T\nS
Connectivity technologyWired
Data transfer rate (max)10000 Mbit/s
Depth167 mm
Fiber optic connectorSFP+
Fiber ports quantity2
Flow control supportY
Height69 mm
Host interfacePCI-E
Intel Data Direct I/O TechnologyY
Intel Virtual Machine Device Queues (VMDq)Y
Intelligent OffloadsY
Interfacefiber
InternalY
iSCSI supportY
Jumbo frames supportY
Networking standardsIEEE 802.1Q,IEEE 802.1ad,IEEE 802.1as,IEEE 802.1p,IEEE 802.3ae,IEEE 802.3x
Operating altitude0 - 2134 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 55 °C
Quantity1
Receive Side Scaling (RSS)Y
Recommended usageServer
Storage relative humidity (H-H)5 - 80 %
Storage temperature (T-T)-20 - 65 °C
VLAN taggingY
Wake-on-LAN readyY
Width15 mm
Jumbo frames9728
Intel® Virtualization Technology (Intel® VT)Y
Product colourBlack,Green
