Lenovo 00AG580
  • Lenovo 00AG580
  • Lenovo 00AG580
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.



This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.



The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. These new features help reduce complexity, reduce cost, and improve performance with Lenovo servers.
Compatible productsx3550 M5 \nx3650 M5\nx3850 X6/x3950 X6\nnx360 M5\nx3750 M4\nx3850 X6/x3950 X6
Connectivity technologyWired
Data transfer rate (max)10000 Mbit/s
Depth17 mm
Fiber optic connectorSFP+
Fiber ports quantity2
Height167 mm
Host interfacePCI-E
InterfaceFiber
InternalYes
iSCSI supportYes
Jumbo frames supportYes
Networking standardsIEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3p,IEEE 802.3x
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 55 °C
Package weight450 g
Power consumption (typical)14.4 W
Quality of Service (QoS) supportYes
Receive Side Scaling (RSS)Yes
Server operating systems supportedWindows Server 2012,Windows Server 2012 R2
Storage temperature (T-T)-40 - 70 °C
VLAN taggingYes
Width69 mm
Jumbo frames9216

00AG580.pdf

Lenovo 00AG580 Data Sheet

Download (222.66k)

Similar products

  • Lenovo 4XC0H00338
    Lenovo 4XC0H00338
  • Lenovo 00AG560
    Lenovo 00AG560
  • Lenovo 01CV830
    Lenovo 01CV830
  • Lenovo 01CV840
    Lenovo 01CV840

Lenovo 00AG580

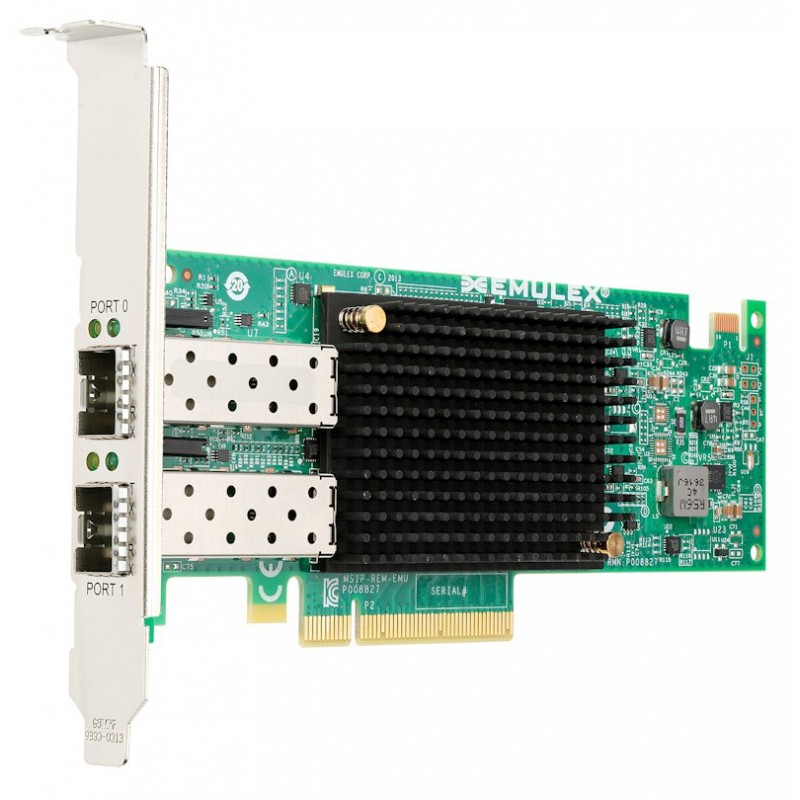

Emulex VFA5.2 2x10 GbE SFP+ Adapter and FCoE/iSCSI SW

00AG580

Out of Stock

£2,073.60
£1,728.00 Ex VAT.
