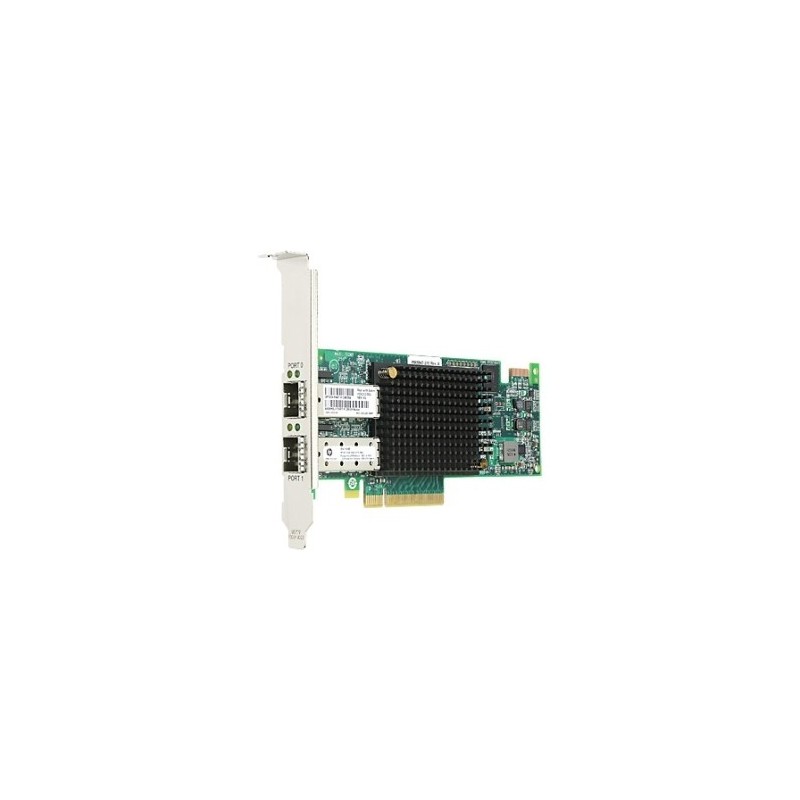

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.

The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.

Certification	AS/NZS CISPR22:2009+A1, Class A\nAustralian EMC Framework (RCM)\ncUR recognized to CSA 22.2, No. 60950-1-07\nEN55022:2010, Class A\nEN55024:2010\nEN55032:2012\nEU (CE Mark)\nFCC Rules, Part 15, Class A\nIndustry Canada, ICES-003, Class A\nJapan VCCI, Clas
Colour of product	Black,Green,Silver
Compatibility	Server
Compatible products	System x3500 M5 Type 5464\nSystem x3550 M5 Type 5463\nSystem x3550 M5 Type 8869\nSystem x3650 M5 Type 5462\nSystem x3650 M5 Type 8871\nSystem x3750 M4 Type 8753\nSystem x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)\nSystem x3950 X6 Type 6241 (E7 v2, E7 v3,
Connectivity technology	Wired
Data transfer rate (max)	16000 Mbit/s
Dell E-Value Code	ATZV
Depth	168 mm
Fiber optic connector	FC,SFP+
Fiber ports quantity	2
Full duplex	Yes
Height	69 mm
Host interface	PCIe
Hot-Plug support	Yes
Hot-swap	Yes
Interface	fiber
Internal	Yes
LED indicators	Yes
Linux operating systems supported	RedHat EL Linux 6.0,RedHat EL Linux 7.0,SuSE Linux 11,SuSE Linux 12.0
Maximum operating distance	150 m
Mean time between failures (MTBF)	10000000 h
Mounting brackets included	Yes
Number of products included	1 pc(s)
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	0 - 55 °C
Other operating systems supported	VMware vSphere ESXi
Package type	box
PCI version	3.0
PCI-SIG* SR-IOV Capable	Yes
Rack mounting	Yes
RoHS compliance	Yes
Server operating systems supported	Windows Server 2012,Windows Server 2012 R2
Storage temperature (T-T)	-20 - 85 °C
Web-based management	Yes
Low-profile bracket	Yes
