Bus type | QPI |
Compatibility | HP DL560 Gen8 |
Component for | server/workstation |
ECC | Yes |
Embedded options available | No |
Enhanced Intel SpeedStep Technology | Yes |
Execute Disable Bit | Yes |
Idle States | Yes |
Intel AES New Instructions | Yes |
Intel Demand Based Switching | Yes |
Intel Flex Memory Access | Yes |
Intel Hyper-Threading Technology | Yes |
Intel Smart Cache | Yes |
Intel Trusted Execution Technology | Yes |
Intel Virtualization Technology | VT-d, VT-x |
Intel vPro Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
L3 cache | 10 MB |
Memory bandwidth (max) | 34.1 GB/s |
Memory channels | Quad |
Number of QPI links | 2 |
On-board graphics adapter | No |
PCI Express slots quantity | 40 |
Processor cores | 4 |
Processor family | Intel Xeon |
Processor frequency | 2 GHz |
Processor model | E5-4603 |
Processor socket | Socket R (LGA 2011) |
Processor threads | 8 |
Scalability | S4S |
Supported instruction sets | AVX |
Supported memory clock speeds | 800, 1066 MHz |
Thermal Monitoring Technologies | Yes |
VID Voltage Range | 0.6 - 1.35 V |

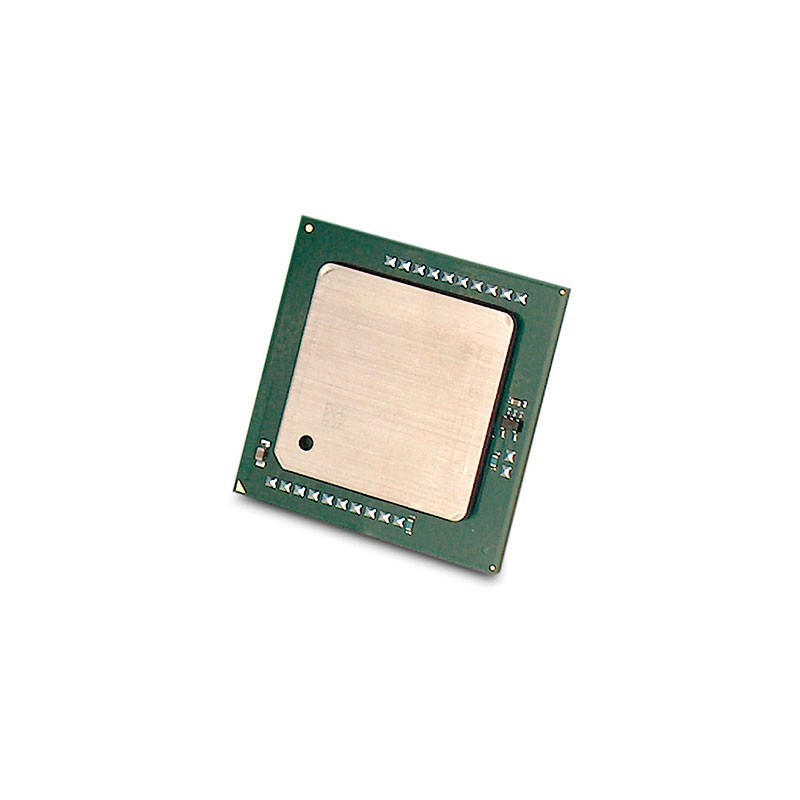

HP DL560 Gen8 Intel Xeon E5-4603 (2.0GHz/4-core/10MB/95W) Processor Kit
686826-B21
Out of Stock
