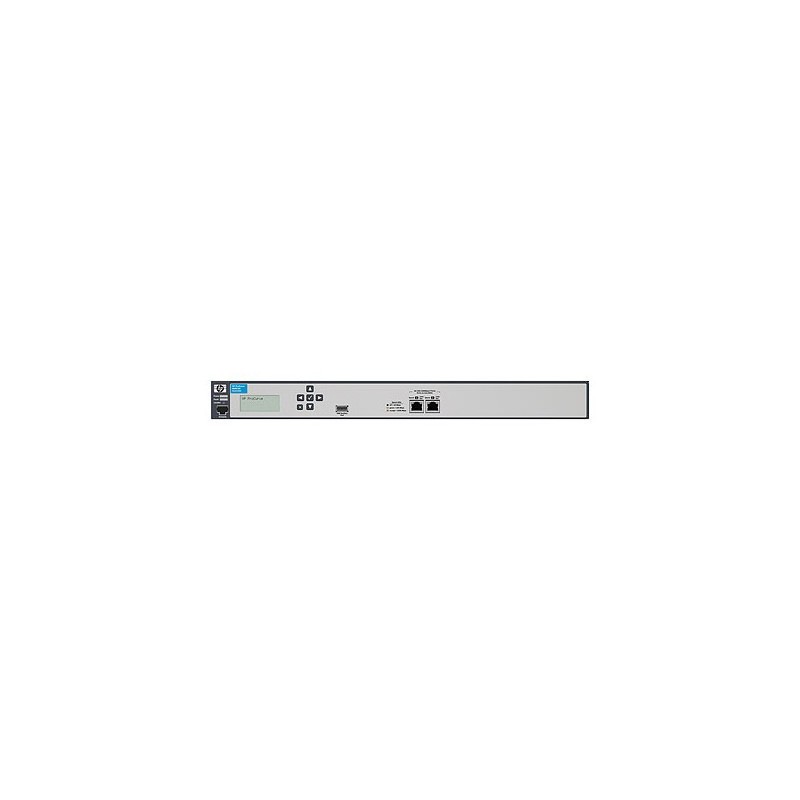

HP E-MSM760 Mobility Controller
Overview




Working in unison with HP E-series MultiService Mobility Access Points, HP E-series MultiService Mobility Controllers deliver high-performing networking solutions for the mid-market. The enhanced architecture scales from IEEE 802.11b to 802.11n without requiring expensive controller upgrades. Robust identity and roles-based user account profiles, as well as Virtual Service Communities (VSCs) with independently configurable Quality of Service (QoS), authentication, encryption, and VLAN support, deliver intelligence to the edge of the network. Scalable from small to large mid-market deployments, the E-series wireless controllers deliver a fast-roaming capability. Wireless security is comprehensive with support for internal and external authentication, authorization, and accounting (AAA) servers, built-in stateful firewall, per-user VLAN mapping, and mutual controller/access point (AP) authentication.







Features




Firewall




• Stateful firewall: enforces firewall policies to control traffic and filter access to network services; maintains session information for every connection passing through it, enabling the firewall to control packets based on existing sessions







Management




• Complete session logging: provides detailed information for problem identification and resolution







Connectivity




• 10-GbE connections to the switch (for E-MSM765zl mobility controller): two 10-GbE wire-speed internal connections help ensure that the network connections from the application to the switch backplane will not limit application performance







Performance




• High performance processor system: - E-MSM765zl: Intel Core 2 Duo Processor T7500 with 2.2 GHz, 4 MB cache provides a high performance compute environment in a small footprint using a single-switch slot. - E-MSM760: Intel Core 2 Duo Processor E6400 with 2.13 GHz, 2 MB cache provides a high performance compute environment in an appliance form factor. .







Mobility




• Solutions enhanced for businesses: HP E-series MSM7xx controllers deliver services for a range of vertical markets, including healthcare, hospitality, education, manufacturing, transportation, and service providers







Security




• Secure Shell (SSHv2): encrypts all transmitted data for secure, remote command-line interface (CLI) access over IP networks







Quality of Service (QoS)




• Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue guaranteed minimums
Cabling technology10/100/1000 Base-T(X)
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Connectivity technologyWired
Data transfer rate (max)1000 Mbit/s
Depth390.7 mm
Ethernet LANYes
Ethernet LAN connectionYes
Form factor1U
Full duplexYes
Heat dissipation434 BTU/h
Height44.5 mm
Host interfaceEthernet
Input current2/1 A
Input frequency50 - 60 Hz
Input voltage100 - 240 V
InterfaceEthernet
InternalNo
Networking standardsIEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Operating relative humidity (H-H)15 - 80 %
Operating relative humidity range15 - 80 %
Operating temperature (T-T)5 - 40 °C
Operating temperature range (T-T)5 - 40 °C
Ports quantity3
Power consumption (typical)127 W
Power supply typeAC
Rack mountingYes
SafetyUL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; EN 60950-1
Size19 "
Source data-sheetIcecat.biz
Weight6100 g
Wi-FiYes
Width439.9 mm
Wireless LAN connectionYes
