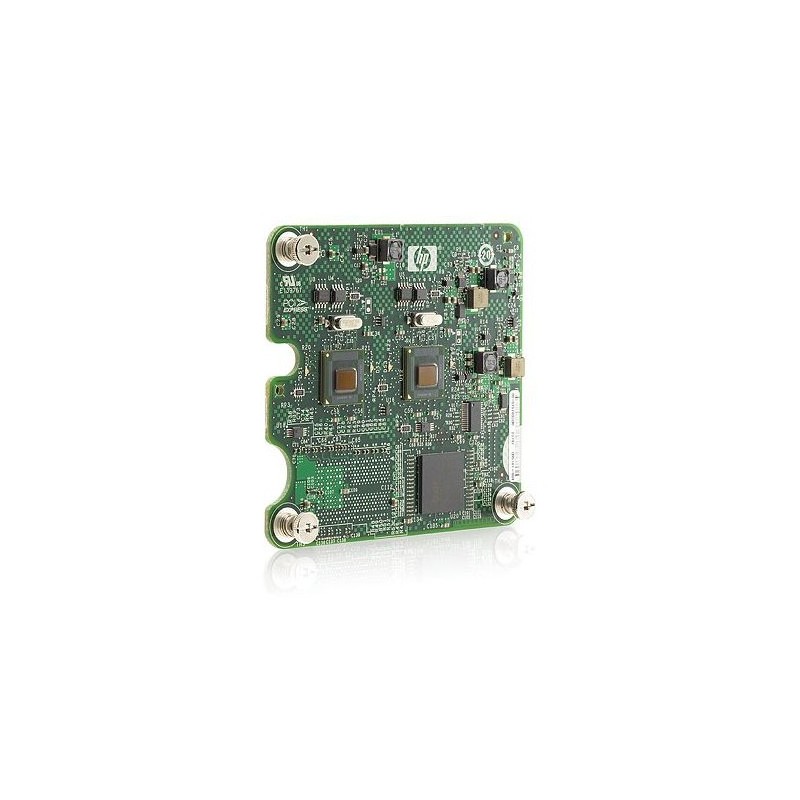

HP NC364m Quad Port 1GbE BL-c Adapter
  • HP NC364m Quad Port 1GbE BL-c Adapter
  • HP NC364m Quad Port 1GbE BL-c Adapter
The HP NC364m is a HP BladeSystem c-Class network adapter providing four Gigabit Ethernet ports on a single card saving valuable server mezzanine slots for other purposes. The x4 PCI Express NC364m is supported on Integrity and ProLiant c-Class server blades in all mezzanine slots. For Integrity c-Class servers, it is the first network adapter mezzanine option available providing up to 16 Gigabit Ethernet ports per BL860c server, 128 ports per c7000 enclosure. For ProLiant, the NC364m is the second quad-port adapter option for c-Class allowing ProLiant customers a choice between an adapter that uses either an Intel or Broadcom controller.; The NC364m is ideal for virtualization, security, server consolidation, network segmentation, and other server applications requiring maximum throughput and port density. The total aggregate throughput of 4Gbps also meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.



Ethernet Throughput.

The HP NC364m Quad Port 1GbE BL-c Adapter has up to 2000 Mbps full duplex Ethernet transfer rate per port (8000 Mbps combined) delivering better network performance and improved response time by removing bottlenecks across the entire network. The NC364m support for 9K jumbo frames (also known as extended frames) permit a 9K byte transmission unit (MTU), which is six times the size of standard 1500 byte Ethernet frame. Supporting jumbo frames is a way to achieve higher throughput and better CPU utilization. IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC364m to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance.
Cabling technology10/100/1000BaseT(X)
Colour of productBlack, Green, Silver, White
Connectivity technologyWired
Data transfer rate (max)2000 Mbit/s
Ethernet LAN (RJ-45) ports quantity4
Ethernet LAN connectionYes
Host interfacePCI-E
InterfaceEthernet
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x
Operating relative humidity range10 - 90 %
Operating temperature range (T-T)10 - 35 °C
Source data-sheetIcecat.biz
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-40 - 70 °C

Similar products

  • Hewlett Packard Enterprise 10Gb 2x 571SFP+
    Hewlett Packard Enterprise 10Gb 2x 571SFP+
  • Hewlett Packard Enterprise 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
    Hewlett Packard Enterprise 8Gb 2-port PCIe...
  • Hewlett Packard Enterprise 6600 4GbE WAN HIM Router Module
    Hewlett Packard Enterprise 6600 4GbE WAN...
  • Hewlett Packard Enterprise JG535A
    Hewlett Packard Enterprise JG535A
  • Hewlett Packard Enterprise 7500 48-port 1000BASE-T PoE+ SC Module
    Hewlett Packard Enterprise 7500 48-port...

Hewlett Packard Enterprise NC364m

4xRJ-45, 2x Intel 82571EB, PCI Express x4

447883-B21

Out of Stock

£734.27
£611.89 Ex VAT.
