Blade types supported | HP BladeSystem c-Class |
Chassis type | Embedded |
Dimensions (WxDxH) | 26.67 x 35.71 x 11.43 mm |
Manageability features | Cisco MDS 9000 Family Command Line Interface (CLI), Cisco Fabric Manager, Cisco Fabric Manager Server (optional), Cisco Enterprise Package (optional) |
Multimedia | Small Form-Factor Pluggable Plus (SFP+) and Small Form-Factor Pluggable optical transceivers |
Optional software | Cisco Fabric Manager Server for HP BladeSystem c-Class (optional), Cisco Enterprise Package for HP BladeSystem c-Class (optional), Cisco FMS Enterprise Package Bundle for HP BladeSystem c-Class |
Port speed rating | 8 Gbps Fibre Channel |
Ports quantity | 24 |
Security algorithms supported | No |
Source data-sheet | Icecat.biz |
Supported protocols | Fibre Channel |
Switch models | Factory-configured 12-port and 24-port models |
Switching capacity | 384 Gbit/s |
Upgrade type | Standard 12-port model is upgradeable to 24-ports |
Weight | 1370 g |

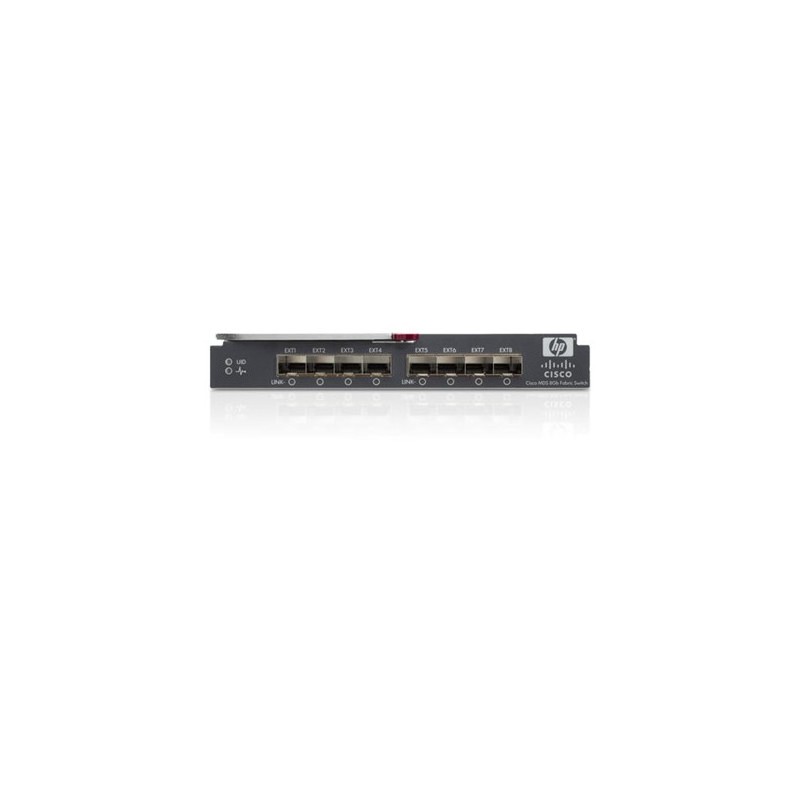

Cisco MDS 8/24c Fabric Switch for HP BladeSystem c-Class
AW564A
Stock Due 12-12-2024
