Antenna gain level (max) | 6 dBi |
Antenna type | internal |
Cable lock slot | Y |
Cable lock slot type | Kensington |
Certification | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, EN 50155 |
Channel bandwidth | 160 MHz |
Channels quantity | 18 channels |
Depth | 220.4 mm |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 100,1000 Mbit/s |
Firmware upgradeable | Y |
Flash memory | 256 MB |
Frequency band | 2.412 - 2.472, 5.745 - 5.825 GHz |
Height | 55.1 mm |
Internal memory | 1024 MB |
LED indicators | Y |
Maximum data transfer rate | 5200 Mbit/s |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3at |
Non-operating altitude | 0 - 4572 m |
Number of products included | 1 pc(s) |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | -20 - 50 °C |
Placement | Ceiling,Wall |
Power over Ethernet (PoE) | Yes |
Security algorithms | 802.1x RADIUS,AES,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA,WPA2 |
Storage temperature (T-T) | -30 - 70 °C |
USB 2.0 ports quantity | 1 |
WAN connection | Ethernet (RJ-45) |
Weight | 1600 g |
Width | 220 mm |
2.4 GHz | Y |
5 GHz | Y |
Wi-Fi Multimedia (WMM)/(WME) | Y |
MIMO | Y |
MIMO type | Multi User MIMO |
Dynamic Frequency Selection (DFS) | Y |
Product colour | White |
Maximal-Ratio Combining (MRC) | Y |
Cyclic Shift Diversity (CSD) | Y |
Data unit aggregation | A-MSDU, A-MPDU |

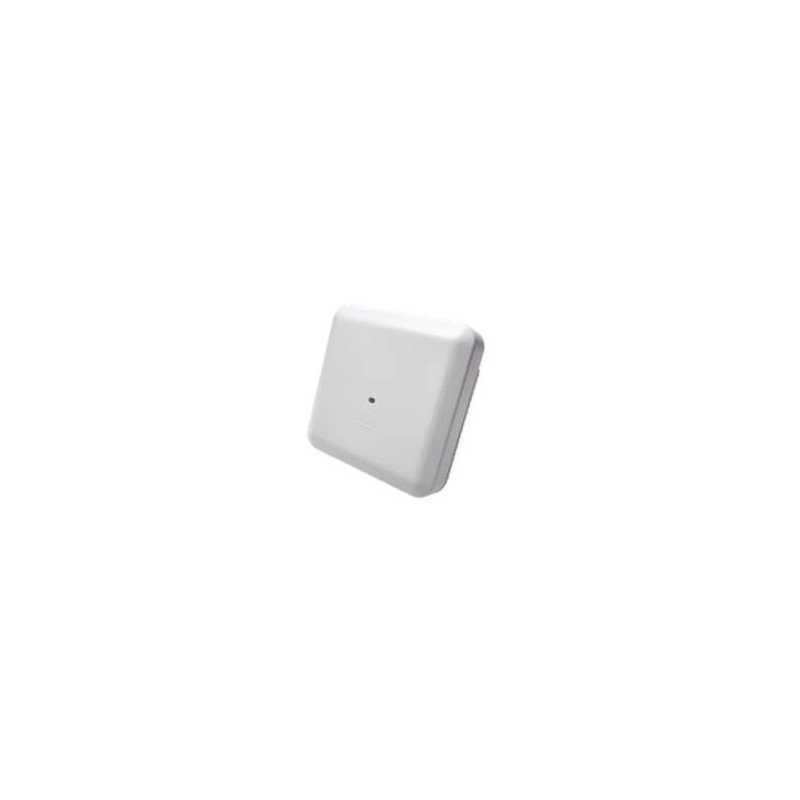

Dual-band controller-based 802.11a/g/n/ac, Internal Antennas, C Regulatory Domain
AIR-AP2802I-C-K9
Out of Stock
