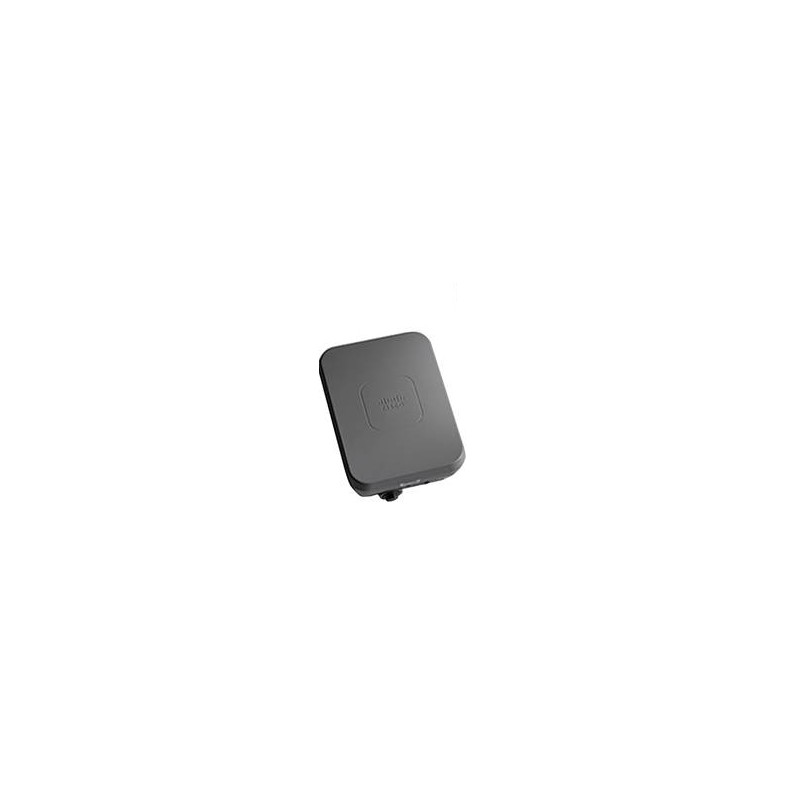

Cisco Aironet 1560
  • Cisco Aironet 1560
  • Cisco Aironet 1560
Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco® wireless innovations such as:



- Cisco CleanAir® technology for spectrum intelligence

- Cisco ClientLink technology for beamforming

- Radio Resource Management (RRM) for dynamic transmitter channel and power control



Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
Antenna gain level (max)10 dBi
CertificationUL60950, 2nd Edition\nCAN/CSA-C22.2 No. 60950, 2nd Edition\nIEC 60950, 2nd Edition\nEN 60950, 2nd Edition \nANSI/IEEE C62.41\nEN61000-4-5 Level 4\nEN61000-4-4 Level 4\nEN61000-4-3 Level 4\nEN61000-4-2 Level 2\nEN60950\nFCC Part 15.247, 15.407\nRSS-247\nRS
Channels quantity36 channels
DC-in jackY
Depth98 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 2.462,5.18 - 5.24,5.26 - 5.32, 5.5 -5.72, 5.745 -5.825 GHz
Height229 mm
InternalN
LED indicatorsY
MAC address filteringY
Maximum data transfer rate1300 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3z
Operating temperature (T-T)-40 - 65 °C
PlacementTable,Wall
Power consumption (typical)32 W
Power over Ethernet (PoE)Yes
Reset buttonY
Security algorithms802.1x RADIUS,AES,EAP,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2
Storage temperature (T-T)-40 - 85 °C
VPN supportIPsec, L2TP
WAN connectionEthernet (RJ-45)
Weight2500 g
Wi-Fi data rate (max)1300 Mbit/s
Width171 mm
2.4 GHzY
5 GHzY
Product colourBlack
Antenna featuresIntegrated antenna

Similar products

  • Cisco CBW140AC
    Cisco CBW140AC
  • Cisco CBW140AC
    Cisco CBW140AC
  • Cisco CBW240AC
    Cisco CBW240AC
  • Cisco CBW240AC
    Cisco CBW240AC
  • Cisco CBW140AC
    Cisco CBW140AC

Cisco Aironet 1560

Dual-band 802.11a/g/n/ac, Wave 2, internal semi-omni antennas

AIR-AP1562I-B-K9

Out of Stock

£1,716.74
£1,430.62 Ex VAT.
