10G support | Yes |
AC input frequency | 47/63 Hz |
AC input voltage | 100-240 V |
Access Control List (ACL) | Y |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Broadcast storm control | Y |
Built-in processor | Y |
Cable types supported | Cat6,Cat7,Fiber |
Cables included | AC,Serial |
Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Colour of product | Black |
Console port | RJ-45 |
Copper ethernet cabling technology | 10GBASE-T,100BASE-TX,1000BASE-T |
Depth | 350 mm |
DHCP client | Y |
DHCP server | Y |
Fiber optic connector | SFP+ |
Firmware upgradeable | Y |
Flash memory | 256 MB |
Flow control support | Y |
Form factor | 1U |
Gigabit Ethernet (copper) ports quantity | 1 |
Head-of-line (HOL) blocking | Y |
Heat dissipation | 288.67 BTU/h |
Height | 44 mm |
IGMP snooping | Y |
Internal memory | 512 MB |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
MAC address table | 64000 entries |
Management protocols | TFTP, SNTP, Telnet, SNMP |
Mean time between failures (MTBF) | 434723.62 h |
Multicast support | Y |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Noise level | 49.6 dB |
Number of IP interfaces | 256 |
Number of multicast groups filtered | 4000 |
Number of power supply units | 1 |
Number of queues | 8 |
Number of static routes | 8000 |
Number of VLANs | 4094 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Physical stacking (units) | 8 |
Port mirroring | Y |
Power consumption (typical) | 84.6 W |
Power supply included | Y |
Processor frequency | 800 MHz |
Quality of Service (QoS) support | Y |
Quick start guide | Y |
Rack mount kit | Y |
Rack mounting | Yes |
Rate limiting | Y |
Reset button | Y |
Security algorithms | 802.1x RADIUS,HTTPS,SSH,SSL/TLS |
Spanning tree protocol | Y |
SSH/SSL support | Y |
Stackable | Yes |
Storage relative humidity (H-H) | 10 - 90 % |
Storage temperature (T-T) | -20 - 70 °C |
Switch layer | L3 |
Switch type | Managed |
Switching capacity | 320 Gbit/s |
Throughput | 238.08 Mpps |
USB 2.0 ports quantity | 1 |
Ventilation fan(s) | 4 |
VLAN support | Y |
Web-based management | Y |
Weight | 5230 g |
Width | 440 mm |
ARP inspection | Y |
Jumbo frames | 9000 |
IP-MAC-Port binding | Y |
Private VLAN | Y |
SFP+ module slots quantity | 8 |
BPDU filtering/protection | Y |
Port-based VLAN | Y |
MAC address auto-learning supported | Y |
Loop protection | Y |
Authentication | Port-based authentication |
Tagged VLAN | Y |
Cable length detection | Y |
Resource CD | Y |

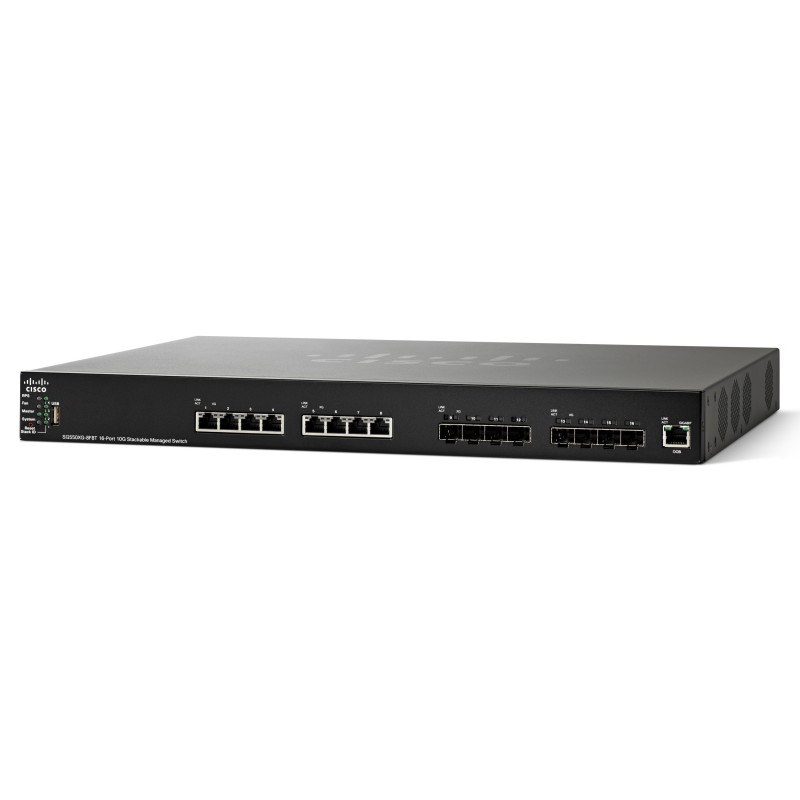

8 x 10 Gigabit Ethernet 10GBase-T, 8 x 10 Gigabit Ethernet SFP+, 1 Gigabit Ethernet Management Port
SG550XG-8F8T-K9-UK
Out of Stock
