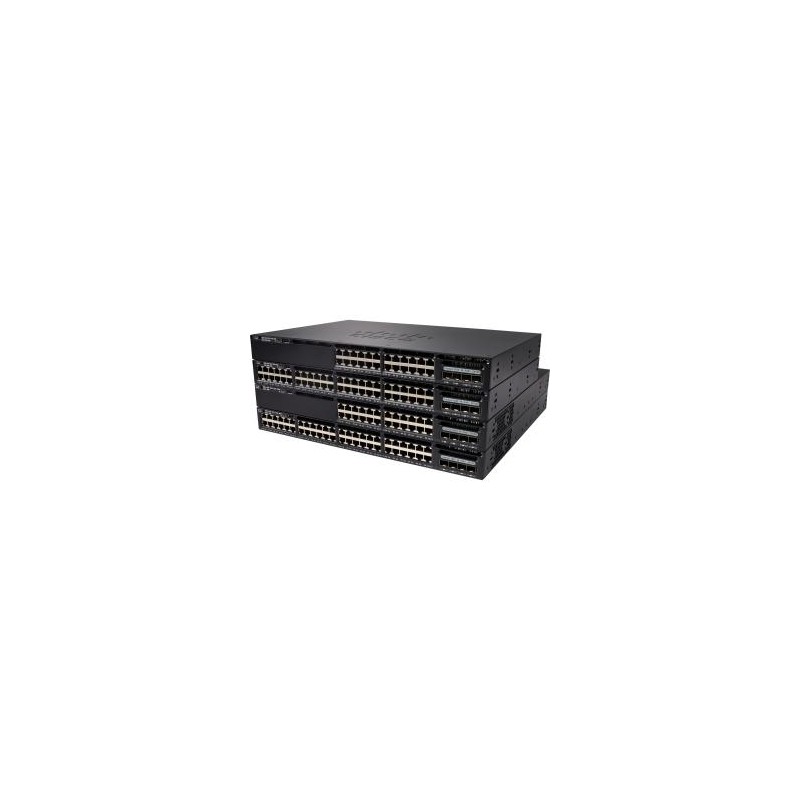

Cisco WS-C3650-48FQM-S
  • Cisco WS-C3650-48FQM-S
  • Cisco WS-C3650-48FQM-S
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
10G supportYes
AC adapter includedYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Cable types supportedCat5,Cat5e,Cat6,Cat6a
Colour of productBlack
DC-in jackYes
Depth296 mm
DHCP clientYes
DHCP serverYes
Fiber optic connectorSFP+
Flash memory4096 MB
Flow control supportYes
Form factor1U
Full duplexYes
Height44 mm
IGMP snoopingYes
Input current5 - 12 A
IP routingYes
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address filteringYes
MAC address table32000 entries
ManualYes
Mean time between failures (MTBF)272260 h
MIB supportYes
Multicast supportYes
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x,IEEE 802.3z
Operating altitude0 - 3000 m
Operating temperature (T-T)-5 - 45 °C
Power consumption (max)975 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Power supply includedYes
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity392 Gbit/s
Total Power over Ethernet (PoE) budget775 W
User guideYes
VLAN supportYes
Wall mountableYes
Web-based managementYes
Weight5740 g
Width445 mm
ARP inspectionYes
Jumbo frames9198
Private VLANYes
BPDU filtering/protectionYes
Port-based VLANYes
Installed SFP+ modules quantity4
Traffic classificationYes
MAC address table (multicast)24000 entries
Stacked VLANYes
Traffic shapingYes

WS-C3650-48FQM-S.pdf

Cisco WS-C3650-48FQM-S Data Sheet

Download (1.41M)

Similar products

  • Cisco IE-2000-16TC-G-N
    Cisco IE-2000-16TC-G-N
  • Cisco IE-2000-16PTC-G-E
    Cisco IE-2000-16PTC-G-E
  • Cisco IE-2000-16PTC-G-L
    Cisco IE-2000-16PTC-G-L
  • Cisco IE-2000-16T67P-G-E
    Cisco IE-2000-16T67P-G-E
  • Cisco IE-2000-4S-TS-G-B
    Cisco IE-2000-4S-TS-G-B

Cisco WS-C3650-48FQM-S

4 GB DRAM, 4096 VLAN, 48 10/100/1000 Ethernet PoE+, 4x10G Uplink, 975WAC, 1 RU, IP Base set

WS-C3650-48FQM-S

Out of Stock

£14,866.99
£12,389.16 Ex VAT.
